Car tool/Lifting jack for BMW 6 Series E24 633CSi (1984)

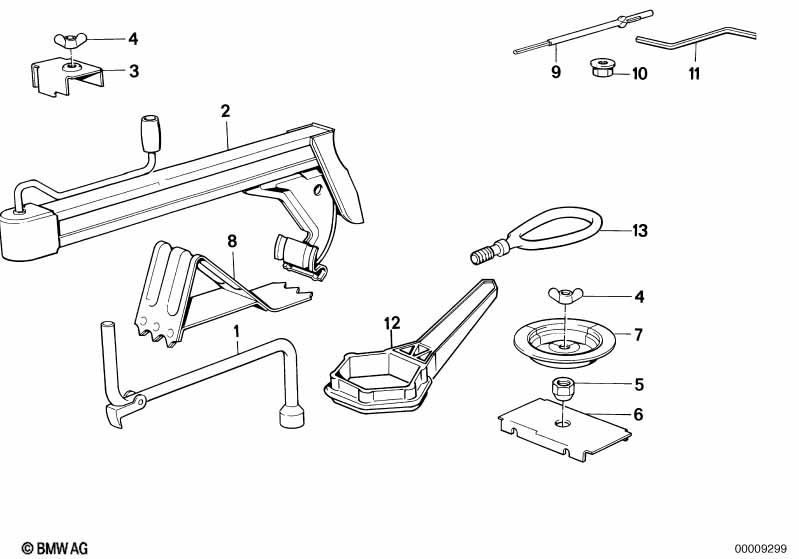

This Car tool/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crank | 1 | 09/1984 | 71121151250 | $29.85 | ENDED | Shop at ECS Tuning | |||
| 01 | Crank | 1 | 09/1984 | 71121179953 | $14.56 | Shop at ECS Tuning | ||||
| 01 | Crank adjustable | 1 | 71121129746 | $43.54 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lifting jack | 1 | 71121150569 | $84.72 | Shop at ECS Tuning | |||||
| 03 | Bracket car jack hold-down | 1 | 01/1986 | 71121112226 | $1.13 | ENDED | Shop at ECS Tuning | |||
| 04 | Wing nut | M8 | 1 | 07119924040 | $1.42 | Shop at ECS Tuning | ||||
| 04 | Wing nut | M8 | 1 | 71151179257 | $3.25 | ENDED | Shop at ECS Tuning | |||
| 05 | Wheel nut | 1 | 36111106017 | $5.07 | Shop at ECS Tuning | |||||
| 07 | Bracket for spare wheel | 1 | 09/1977 | 02/1986 | 71151116856 | $5.48 | Shop at ECS Tuning | |||
| 08 | Chock | 1 | 09/1987 | 71121103038 | $11.50 | ENDED | Shop at ECS Tuning | |||
| 09 | Emergency tool electr.window | 1 | 71111150191 | $9.02 | Shop at ECS Tuning | |||||
| 10 | Emergency tool electr.window | 1 | 51331366366 | $9.84 | ENDED | Shop at ECS Tuning | ||||
| 11 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
