Bulb/fuse for BMW 3 Series E30 320i (1992)

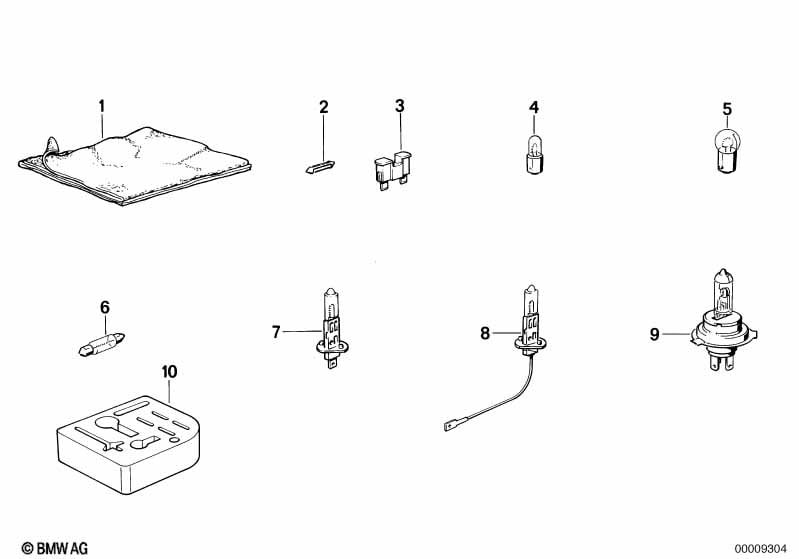

This Bulb/fuse technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Polishing cloth | 1 | 71111115810 | $2.29 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 4W | X | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 10W | X | 05/1995 | 07119905337 | $1.96 | Shop at ECS Tuning | |||
| 05 | Bulb | 12V 5W | X | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
