Car tool/Lifting jack for BMW 3 Series E30 325i (1991)

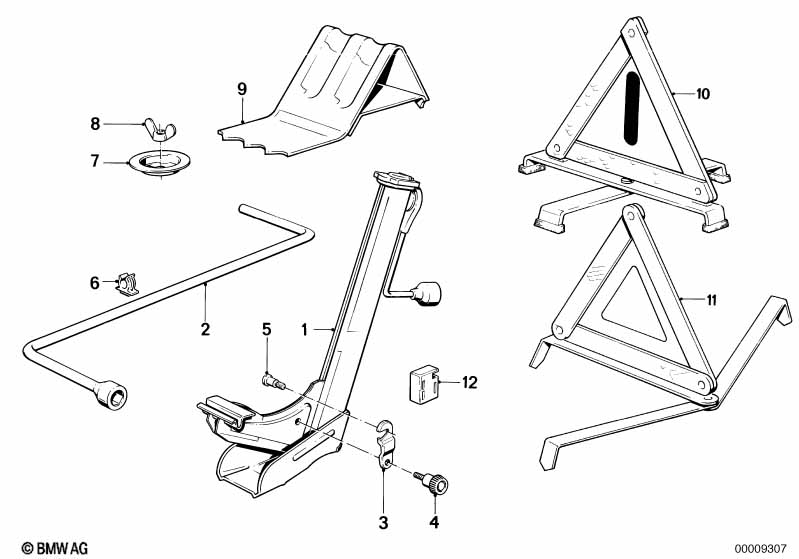

This Car tool/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lifting jack | 1 | 71121178721 | $85.52 | ENDED | Shop at ECS Tuning | ||||
| 01 | Lifting jack | ZA SÜDAFRIKA | 1 | 71121179250 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO M TECHNIC | ||||||||||
| 01 | Lifting jack | 1 | 01/1988 | 71121180172 | $85.52 | ENDED | Shop at ECS Tuning | |||
| 02 | Crank | 1 | 71122903704 | Shop at ECS Tuning | ||||||
| 03 | Tensioning lever | 1 | 71121126858 | $0.97 | ENDED | Shop at ECS Tuning | ||||
| 03 | Tensioning lever | ZA SÜDAFRIKA | 1 | 71122901691 | Shop at ECS Tuning | |||||
| 04 | Knurled bolt | 1 | 71121127514 | $5.76 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | M6X4 | 1 | 07119907529 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister-head screw | M6X10 | 1 | 01/1988 | 07119907519 | $0.67 | ENDED | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Lifting jack | X | 01/1988 | 71121180172 | $85.52 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 2 | 51471933468 | $4.47 | ENDED | Shop at ECS Tuning | ||||
| 06 | Clamp | 2 | 72601916260 | $6.52 | Shop at ECS Tuning | |||||
| 07 | Bracket for spare wheel | 1 | 71151116778 | $1.70 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket for spare wheel | 1 | 71151180625 | $3.62 | Shop at ECS Tuning | |||||
| 08 | Wing nut | M8 | 1 | 07119924040 | $1.42 | Shop at ECS Tuning | ||||
| 08 | Wing nut | M8 | 1 | 71151179257 | $3.25 | ENDED | Shop at ECS Tuning | |||
| 09 | Chock, aluminium | 1 | 71126756392 | $11.50 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
