Trailer hitch with fixed ball head for BMW 3 Series E21 320 (1977)

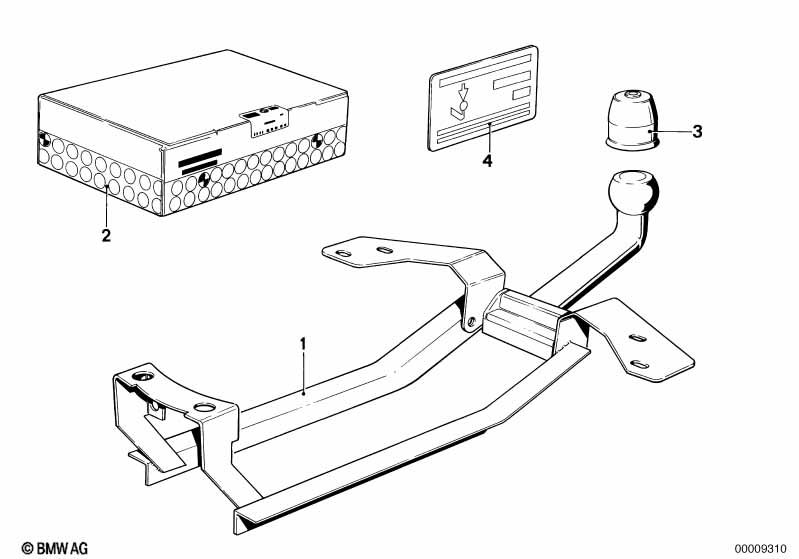

This Trailer hitch with fixed ball head technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Towing hitch, detachable | 1200KG | 1 | 71601246906 | Shop at ECS Tuning | |||||
| For vehicles with National version Germany |
L801A=No |
|||||||||
| 01 | Trailer hitch with fixed ball head | 1200KG | 1 | 71601175077 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO TRAILER HITCH W. REMOVABLE BALL |
||||||||||
| 02 | Set of mounting electric parts | 1 | 08/1977 | 71609555296 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Germany |
L801A=No |
|||||||||
| 02 | Set of mounting electric parts | 1 | 08/1977 | 71609555297 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set of mounting electric parts | 1 | 71609555299 | ENDED | Shop at ECS Tuning | |||||
| 03 | Trailer hitch ball protection cap | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 04 | Drawbar load ratings plate | 50KG | 1 | 71601135081 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
