Single parts of trailer hitch for BMW 7 Series E32 750iL (1994)

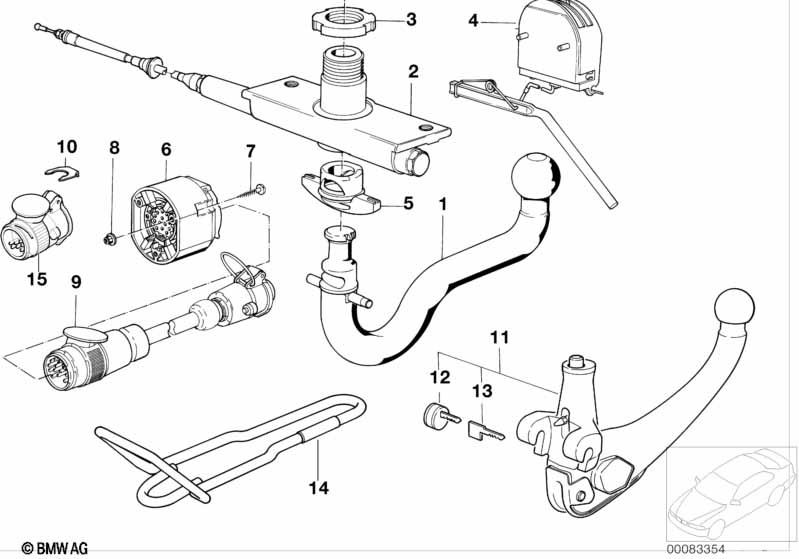

This Single parts of trailer hitch technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Removable ball | ORIS | 1 | 71601135046 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Towing hitch, detachable | ORIS | X | 71601130292 | ENDED | Shop at ECS Tuning | ||||
| -- | Towing hitch, detachable | X | 71601136361 | $1277.82 | Shop at ECS Tuning | |||||
| 02 | Support for ball head | ORIS | 1 | 71601130208 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Removable ball | ORIS | X | 71601130209 | ENDED | Shop at ECS Tuning | ||||
| -- | Removable ball | ORIS | X | 71601135046 | ENDED | Shop at ECS Tuning | ||||
| 03 | Nut | ORIS | 1 | 71601130294 | ENDED | Shop at ECS Tuning | ||||
| 04 | Input unit | ORIS | 1 | 71601130419 | ENDED | Shop at ECS Tuning | ||||
| 05 | Protection cap | ORIS | 1 | 71601130266 | Shop at ECS Tuning | |||||
| 06 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M5X35 | 3 | 07119907698 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M5-10-ZNNIV SI | 3 | 07119906520 | Shop at ECS Tuning | |||||
| 09 | Adapter | 1 | 61131382153 | $145.08 | Shop at ECS Tuning | |||||
| 10 | Clamp | 2 | 61131382132 | Shop at ECS Tuning | ||||||
| 11 | Removable ball | 1 | 71601136363 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Towing hitch, detachable | X | 71601136361 | $1277.82 | Shop at ECS Tuning | |||||
| 12 | Key (Code) | ORIS | X | 71601137621 | Shop at ECS Tuning | |||||
| 12 | Key (blank) | ORIS | X | 71601137622 | Shop at ECS Tuning | |||||
| 13 | Key (Code) | ORIS | X | 71601137621 | Shop at ECS Tuning | |||||
| 14 | Lever | 1 | 71601135368 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Towing hitch, detachable | ORIS | X | 71601130292 | ENDED | Shop at ECS Tuning | ||||
| 15 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
