Towing hitch, detachable for BMW 8 Series E31 850Ci (1994)

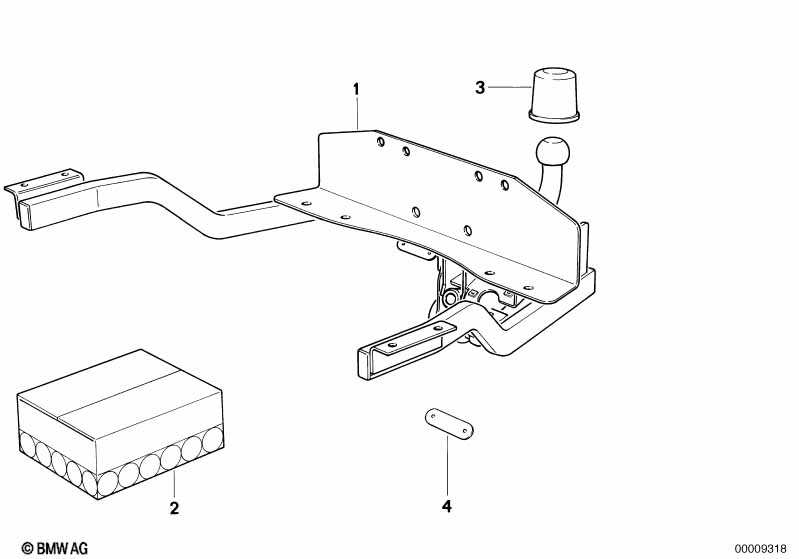

This Towing hitch, detachable technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only applies to | ||||||||||
| -- | Plate | X | 51128108578 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| -- | Flap | X | 51128108579 | $28.96 | Shop at ECS Tuning | |||||
| -- | Lock | X | 51128118147 | $1.85 | Shop at ECS Tuning | |||||
| -- | Cover | X | 51128124048 | $202.44 | Shop at ECS Tuning | |||||
| 01 | Towing hitch, detachable | 2100KG | 1 | 71601137242 | ENDED | Shop at ECS Tuning | ||||
| 03 | Trailer hitch ball protection cap | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 04 | Drawbar load ratings plate | MIN 50KG | 1 | 71601137734 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Towing hitch, detachable?
- This technical diagram illustrates the Towing hitch, detachable within the Equipment Parts group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Plate (Part #51128108578).
- Which models use the hardware listed in this Towing hitch, detachable?
- The hardware and components featured in the Towing hitch, detachable are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Plate (51128108578) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Towing hitch, detachable assembly?
- Each item in the Towing hitch, detachable corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Plate by locating its position on the schematic, which then links to the official BMW part number 51128108578 for the Equipment Parts section.
