Single parts of trailer hitch for BMW 5 Series E34 518i (1994)

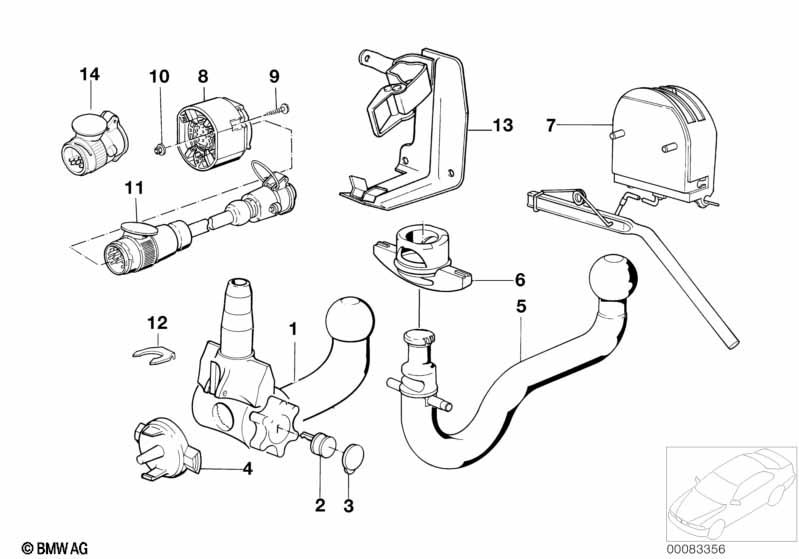

This Single parts of trailer hitch technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Removable ball | WESTFALIA | 1 | 71601182436 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Key (code) 2axx | WESTFALIA | X | 09/1995 | 71601134421 | Shop at ECS Tuning | ||||
| 02 | Key (blank) code 2axx | WESTFALIA | X | 09/1995 | 71601135396 | Shop at ECS Tuning | ||||
| 02 | Key (Code) | ORIS | X | 71601137621 | Shop at ECS Tuning | |||||
| 02 | Key (blank) | ORIS | X | 71601137622 | Shop at ECS Tuning | |||||
| 03 | protective cap, key | 1 | 71601134422 | $1.04 | Shop at ECS Tuning | |||||
| 05 | Removable ball | ORIS | 1 | 71601135698 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Towing hitch, detachable | ORIS | X | 71601135694 | ENDED | Shop at ECS Tuning | ||||
| 05 | Removable ball | ORIS | 1 | 71601136376 | ENDED, +core | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Towing hitch, detachable | ORIS | X | 71601136373 | $1032.30 | Shop at ECS Tuning | ||||
| 06 | Protection cap | ORIS | 1 | 71601130266 | Shop at ECS Tuning | |||||
| 07 | Input unit | ORIS | 1 | 71601130419 | ENDED | Shop at ECS Tuning | ||||
| 08 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | M5X35 | 3 | 07119907698 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M5-10-ZNNIV SI | 3 | 07119906520 | Shop at ECS Tuning | |||||
| 11 | Adapter | 1 | 61131382153 | $145.08 | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 61131382132 | Shop at ECS Tuning | ||||||
| 13 | Holder | WESTFALIA | 1 | 71601134220 | Shop at ECS Tuning | |||||
| 14 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
