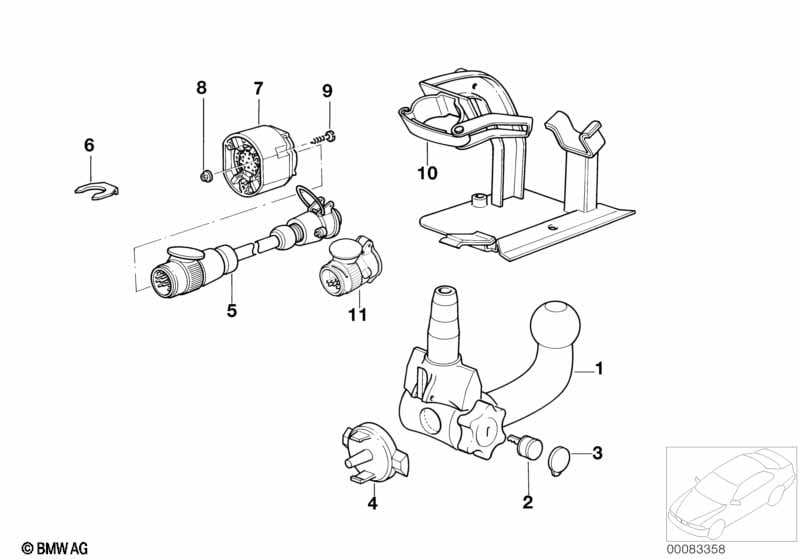

Single parts of trailer hitch for BMW 8 Series E31 850Ci (1993)
This Single parts of trailer hitch technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Removable ball | WESTFALIA | 1 | 71601137245 | +core | Shop at ECS Tuning | ||||
| 02 | Key (code) 2axx | WESTFALIA | 1 | 09/1995 | 71601134421 | Shop at ECS Tuning | ||||
| 02 | Key (blank) code 2axx | WESTFALIA | 1 | 09/1995 | 71601135396 | Shop at ECS Tuning | ||||
| 03 | protective cap, key | 1 | 71601134422 | $1.04 | Shop at ECS Tuning | |||||
| 05 | Adapter | 1 | 61131382153 | $145.08 | Shop at ECS Tuning | |||||
| 06 | Clamp | 1 | 61131382132 | Shop at ECS Tuning | ||||||
| 07 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 08 | Hex nut | M5-10-ZNNIV SI | 3 | 07119906520 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | M5X35 | 3 | 07119907698 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Holder | WESTFALIA | 1 | 71601137250 | ENDED | Shop at ECS Tuning | ||||
| 11 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
