Trailer hitch with fixed ball head for BMW 5 Series E28 M5 (1988)

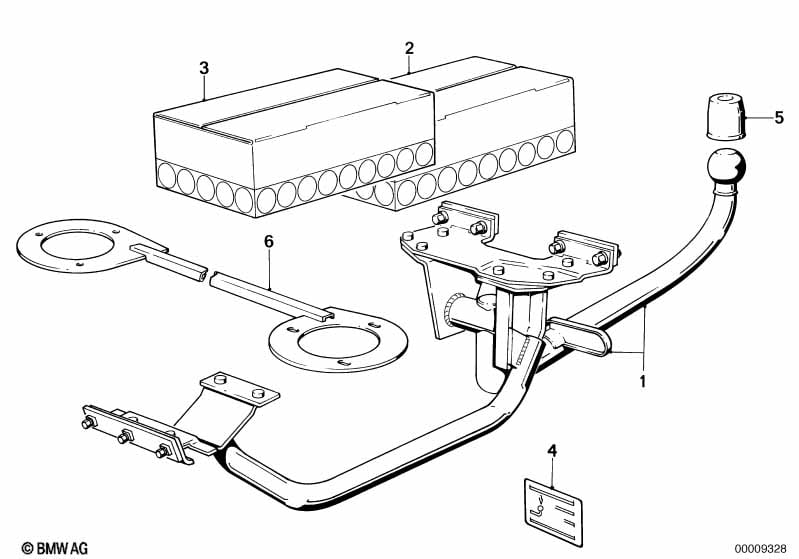

This Trailer hitch with fixed ball head technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Drawbar load ratings plate | 50KG | 1 | 71601135081 | Shop at ECS Tuning | |||||
| 04 | Drawbar load ratings plate | 65KG | 1 | 71601246469 | Shop at ECS Tuning | |||||
| 05 | Trailer hitch ball protection cap | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement | 1 | 71601126613 | $153.70 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
