Wiring set trailer coupling for BMW 3 Series E30 318i (1993)

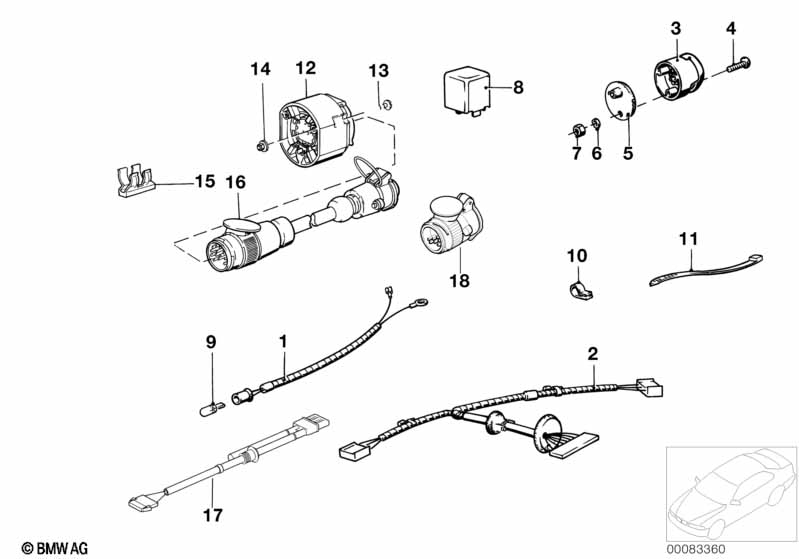

This Wiring set trailer coupling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring turn signal control | 1 | 61121371043 | $55.91 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hazard warning relay | 1 | 61311372021 | $48.49 | Shop at ECS Tuning | |||||
| 09 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 10 | Clamp | 1 | 62121365810 | $1.64 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Plug-in socket | 1 | 09/1987 | 61131378999 | $76.67 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | M5X35 | 3 | 09/1987 | 07119907698 | $0.27 | Shop at ECS Tuning | |||
| 14 | Hex nut | M5-10-ZNNIV SI | 3 | 09/1987 | 07119906520 | Shop at ECS Tuning | ||||
| 15 | Cable holder | 1 | 09/1987 | 61131382165 | Shop at ECS Tuning | |||||
| 16 | Adapter | 1 | 09/1987 | 61131382153 | $145.08 | Shop at ECS Tuning | ||||
| 17 | Wiring const.power connect.trailer hitch | 1 | 61121394068 | Shop at ECS Tuning | ||||||
| 18 | Adapter | 13 - 7 | 1 | 09/1987 | 61136942997 | $34.12 | Shop at ECS Tuning |
