Trailer coupling for BMW 3 Series E30 320i (1991)

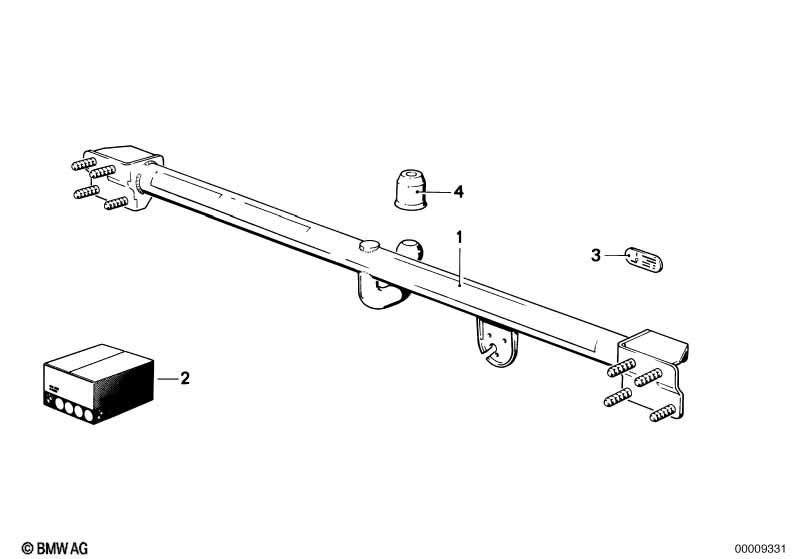

This Trailer coupling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO PERS.TRAILER LOAD 1200KG | ||||||||||
| 01 | Towing hitch, detachable | WESTFALIA | 1 | 09/1987 | 71601134233 | ENDED | Shop at ECS Tuning | |||
| 01 | Trailer hitch with fixed ball head | 1 | 09/1987 | 71601134396 | ENDED | Shop at ECS Tuning | ||||
| 03 | Drawbar load ratings plate | 50KG | 1 | 71601135081 | Shop at ECS Tuning | |||||
| 03 | Drawbar load ratings plate | 75KG | 1 | 71601135082 | Shop at ECS Tuning | |||||
| 03 | Drawbar load ratings plate | MIN 50KG | 1 | 71601135285 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trailer hitch ball protection cap | 1 | 71601246076 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
