Trailer coupling for BMW 3 Series E30 324td (1991)

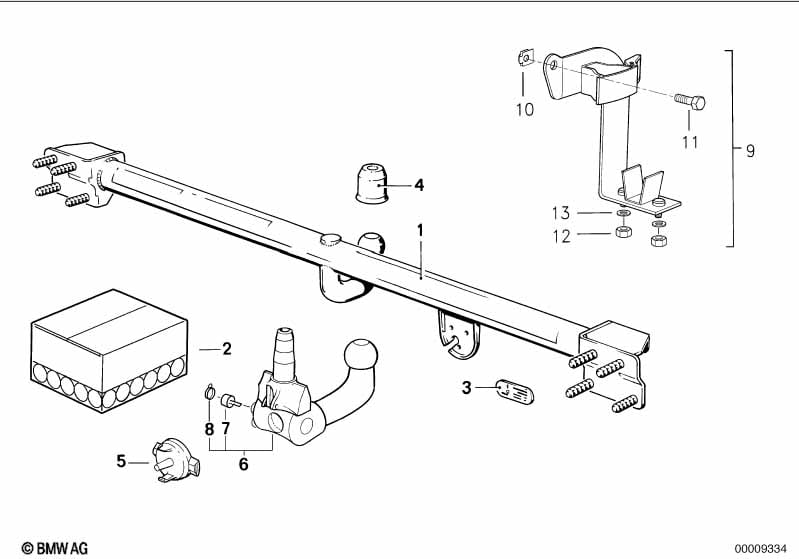

This Trailer coupling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO PERS.TRAILER LOAD 1200KG | ||||||||||
| 01 | Towing hitch, detachable | WESTFALIA | 1 | 71601134233 | ENDED | Shop at ECS Tuning | ||||
| 01 | Trailer hitch with fixed ball head | 1 | 71601134396 | ENDED | Shop at ECS Tuning | |||||
| 03 | Drawbar load ratings plate | 50KG | 1 | 71601135081 | Shop at ECS Tuning | |||||
| 03 | Drawbar load ratings plate | 75KG | 1 | 71601135082 | Shop at ECS Tuning | |||||
| 03 | Drawbar load ratings plate | MIN 50KG | 1 | 71601135285 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trailer hitch ball protection cap | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 05 | Blind plug | ROT | 1 | 09/1992 | 71601090489 | $8.15 | Shop at ECS Tuning | |||
| 06 | Removable ball | 1 | 71601134225 | ENDED | Shop at ECS Tuning | |||||
| 07 | Key (code) 2axx | WESTFALIA | 1 | 09/1995 | 71601134421 | Shop at ECS Tuning | ||||
| 07 | Key (blank) code 2axx | WESTFALIA | X | 09/1995 | 71601135396 | Shop at ECS Tuning | ||||
| 08 | protective cap, key | X | 71601134422 | $1.04 | Shop at ECS Tuning | |||||
| 09 | Holder | 1 | 71601135855 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cage nut | M8 | 1 | 46512333345 | $0.87 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Self-locking hex nut | M6-10 ZN | 2 | 04/1993 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 12 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
