Car tool/Tool box for BMW 8 Series E31 850Ci (1991)

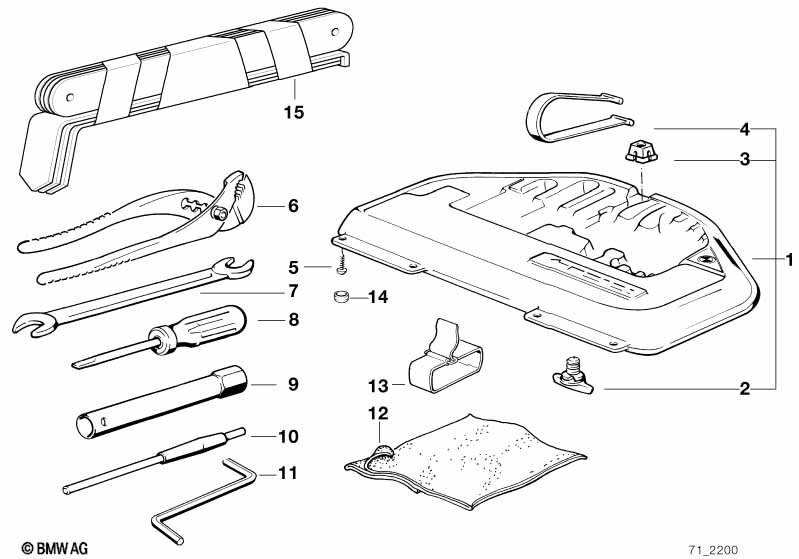

This Car tool/Tool box technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | 1 | 71111182774 | $56.56 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Screw plug | 1 | 71111179444 | $2.17 | Shop at ECS Tuning | |||||
| 03 | Threaded plug | 1 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 04 | Holding strap | 1 | 71111180244 | $2.67 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | M4X10-4.8-H | 4 | 07119907616 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Water pump pliers | 1 | 71111179522 | $23.94 | Shop at ECS Tuning | |||||
| 07 | Open end spanner | 8-10 | 1 | 71111179626 | $5.40 | Shop at ECS Tuning | ||||
| 07 | Open end spanner | 12-13 | 1 | 71111179627 | $5.90 | Shop at ECS Tuning | ||||
| 07 | Open end spanner | 17-19 | 1 | 71111179628 | $10.61 | ENDED | Shop at ECS Tuning | |||
| 08 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 09 | Spark plug wrench | SW16 | 1 | 71111179643 | $33.27 | ENDED | Shop at ECS Tuning | |||
| 09 | Socket wrench | SW10 | 1 | 71111181418 | $8.53 | Shop at ECS Tuning | ||||
| 10 | Pin | 1 | 71111093774 | $4.44 | Shop at ECS Tuning | |||||
| 11 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 12 | Polishing cloth | 1 | 71111115810 | $2.29 | ENDED | Shop at ECS Tuning | ||||
| 13 | Lock | 1 | 71111179043 | $6.77 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cap | 4 | 51168140492 | $0.32 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Car tool/Tool box?
- This technical diagram illustrates the Car tool/Tool box within the Equipment Parts group for the 8 Series E31 850Ci produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Tool box (Part #71111182774).
- Which models use the hardware listed in this Car tool/Tool box?
- The hardware and components featured in the Car tool/Tool box are specific to the 8 Series E31 850Ci produced during 1991. These technical specifications ensure that parts like the Tool box (71111182774) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Car tool/Tool box assembly?
- Each item in the Car tool/Tool box corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Tool box by locating its position on the schematic, which then links to the official BMW part number 71111182774 for the Equipment Parts section.
