Trailer hitch/electr.attaching parts for BMW 3 Series E36 325i (1996)

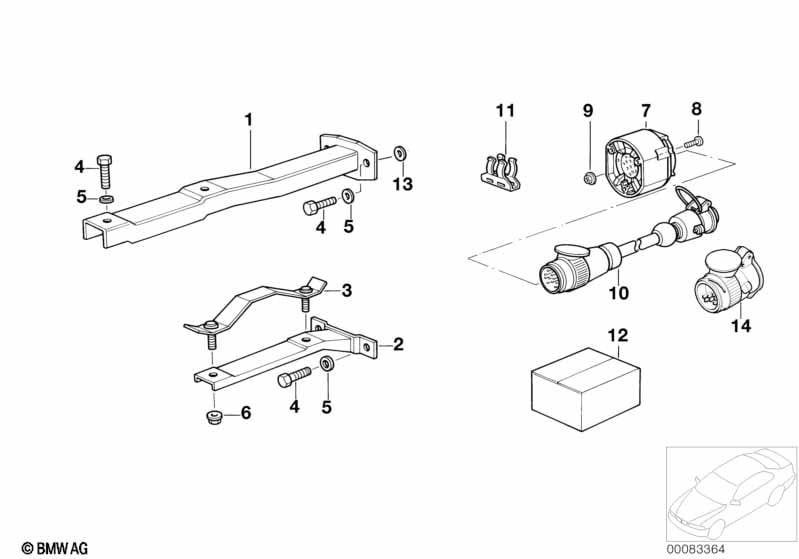

This Trailer hitch/electr.attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Hex bolt | M10X25 8.8 | X | 07119908569 | Shop at ECS Tuning | |||||
| 05 | Washer | 10,5 | X | 07119931332 | Shop at ECS Tuning | |||||
| 05 | Washer | A10,5X22 | X | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 06 | Collar nut | M10 | 4 | 71601090370 | Shop at ECS Tuning | |||||
| 06 | Collar nut | M10 | 4 | 71601138502 | Shop at ECS Tuning | |||||
| 07 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 08 | Countersunk screw | M5 X 35 | 3 | 07119904582 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 10 | Adapter | 1 | 61131382153 | $145.08 | Shop at ECS Tuning | |||||
| 11 | Cable holder | 1 | 61131382165 | Shop at ECS Tuning | ||||||
| 13 | Gasket ring | 1 | 71601139942 | Shop at ECS Tuning | ||||||
| 14 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325i Trailer hitch/electr.attaching parts?
- This technical diagram illustrates the Trailer hitch/electr.attaching parts within the Equipment Parts group for the 3 Series E36 325i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119908569).
- Which models use the hardware listed in this Trailer hitch/electr.attaching parts?
- The hardware and components featured in the Trailer hitch/electr.attaching parts are specific to the 3 Series E36 325i produced during 1996. These technical specifications ensure that parts like the Hex bolt (07119908569) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trailer hitch/electr.attaching parts assembly?
- Each item in the Trailer hitch/electr.attaching parts corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119908569 for the Equipment Parts section.
