Car tool/Lifting jack for BMW 5 Series E39 525d (2003)

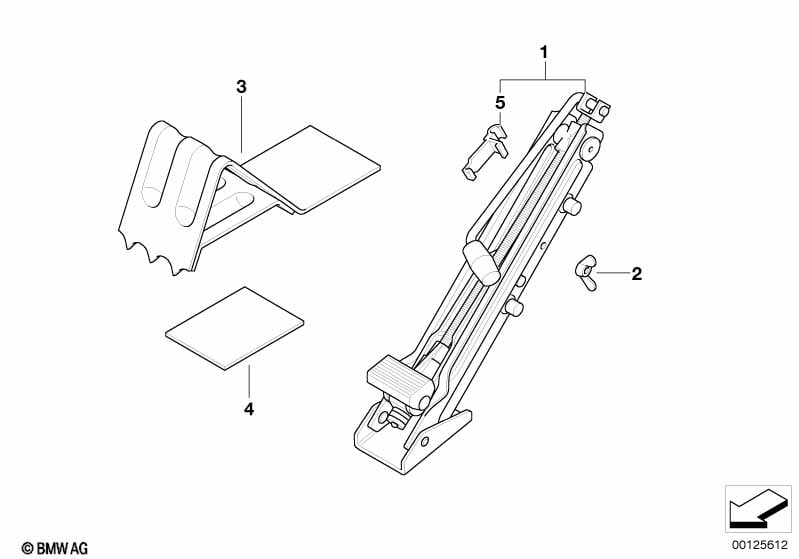

This Car tool/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Articulated car jack, steel | 1 | 71121096040 | $83.07 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wing nut | M6 | 1 | 07119924038 | $0.34 | Shop at ECS Tuning | ||||
| 03 | Chock, aluminium | 1 | 71126756392 | $11.50 | Shop at ECS Tuning | |||||
| 04 | Set felt strip self-adhesive | 2 | 51452353024 | Shop at ECS Tuning | ||||||
| 05 | Clamp, lifting jack | 1 | 71126765000 | $5.57 | ENDED | Shop at ECS Tuning | ||||
| 05 | Clamp, lifting jack | 1 | 71126765001 | $5.57 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
