Single parts of trailer hitch for BMW 5 Series E39 523i (2000)

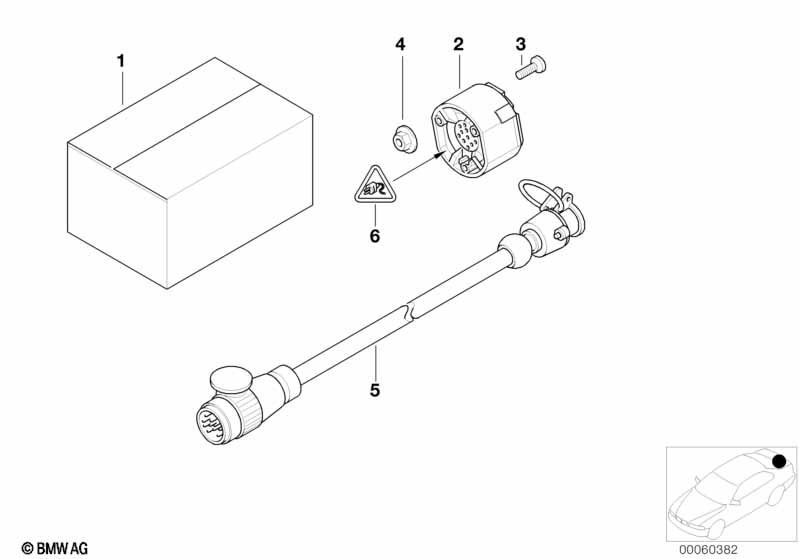

This Single parts of trailer hitch technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mechanical mounting parts set | WESTFALIA | 1 | 71601093014 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 03 | Countersunk screw | M5 X 35 | 3 | 07119904582 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 05 | Adapter | 1 | 61131382153 | $145.08 | Shop at ECS Tuning | |||||
| 06 | Plug housing | 13 POLIG | 1 | 61131378988 | $9.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 with cable | 1,5-2,5 MM² AG | X | 61132466429 | Shop at ECS Tuning | |||||
| -- | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² SN | X | 61135A07B73 | Shop at ECS Tuning | |||||
| -- | Grommet, socket, trailer hitch | 1 | 61138384239 | $7.73 | Shop at ECS Tuning | |||||
| 07 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
