Car tool, supplementary kit for BMW R45-R65LS..78-85 R65 (1985)

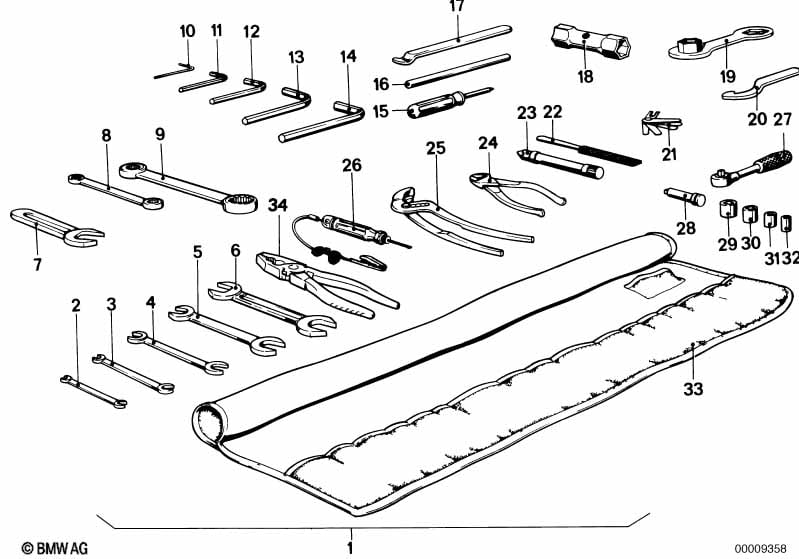

This Car tool, supplementary kit technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool kit | 1 | 71111237840 | $367.07 | ENDED, +core | Shop at ECS Tuning | ||||
| Car tool, supplementary kit | ||||||||||
| 01 | Tool kit | 1 | 71119057542 | $293.26 | +core | Shop at ECS Tuning | ||||
| 02 | Double open-end wrench | 7X8 | 1 | 71111237841 | $8.45 | ENDED | Shop at ECS Tuning | |||
| 03 | Double open-end wrench | 10X11 | 1 | 71111237842 | ENDED | Shop at ECS Tuning | ||||
| 04 | Double open-end wrench | 12X13 | 1 | 71111237843 | $8.21 | ENDED | Shop at ECS Tuning | |||
| 05 | Open-end and ring wrench | 15X17 | 1 | 71111237872 | $22.68 | Shop at ECS Tuning | ||||
| 06 | Double open-end wrench | 17X19 | 1 | 71111237845 | $11.73 | ENDED | Shop at ECS Tuning | |||
| 07 | Open-ended wrench | SW24 | 1 | 71117665489 | $14.54 | Shop at ECS Tuning | ||||
| 08 | Ring spanner | 10X12 | 1 | 71111237847 | $11.97 | Shop at ECS Tuning | ||||
| 09 | Ring spanner | 19X22 | 1 | 71111237848 | $13.89 | ENDED | Shop at ECS Tuning | |||
| 10 | Inner hex spanner | SW8 | 1 | 71111237849 | $3.34 | Shop at ECS Tuning | ||||
| 11 | Inner hex spanner | SW6 | 1 | 71111237850 | $2.16 | Shop at ECS Tuning | ||||
| 12 | Inner hex spanner | SW5 | 1 | 71111237851 | $2.94 | Shop at ECS Tuning | ||||
| 13 | Inner hex spanner | SW4 | 1 | 71111237852 | $2.68 | Shop at ECS Tuning | ||||
| 14 | Inner hex spanner | SW3 | 1 | 71111237853 | $2.64 | Shop at ECS Tuning | ||||
| 15 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 16 | Pin | 1 | 71112301357 | $15.21 | ENDED | Shop at ECS Tuning | ||||
| 17 | Tire lever | 2 | 71111237871 | $13.15 | Shop at ECS Tuning | |||||
| 18 | Socket wrench | 1 | 71111237856 | $16.31 | ENDED | Shop at ECS Tuning | ||||
| 18 | Socket wrench | 19 | 1 | 71112303629 | ENDED | Shop at ECS Tuning | ||||
| 19 | Ring spanner | 27X36 | 1 | 71111237857 | $26.89 | Shop at ECS Tuning | ||||
| 19 | Ring spanner | 27X41 | 1 | 71112303517 | $23.15 | ENDED | Shop at ECS Tuning | |||
| 20 | Hook wrench | 1 | 71111237858 | $23.35 | Shop at ECS Tuning | |||||
| 21 | Feeler gage | 1 | 71119090154 | $8.67 | ENDED | Shop at ECS Tuning | ||||
| 22 | Contact file | 1 | 71111237859 | $4.52 | ENDED | Shop at ECS Tuning | ||||
| 23 | Tire pressure gage | 1 | 71111237860 | $17.64 | ENDED | Shop at ECS Tuning | ||||
| 24 | Diagonal cutter | 1 | 71111237861 | $60.11 | ENDED | Shop at ECS Tuning | ||||
| 25 | Water pump pliers | 1 | 71111179522 | $23.94 | Shop at ECS Tuning | |||||
| 26 | Test lamp | 1 | 71111237863 | $12.44 | Shop at ECS Tuning | |||||
| 27 | Ratchet | 1 | 71111237864 | $54.69 | ENDED | Shop at ECS Tuning | ||||
| 28 | Extension | 1 | 71111237865 | $10.75 | Shop at ECS Tuning | |||||
| 29 | Socket wrench | 13 | 1 | 71111237866 | $7.39 | ENDED | Shop at ECS Tuning | |||
| 30 | Socket wrench | 12 | 1 | 71111237867 | ENDED | Shop at ECS Tuning | ||||
| 31 | Socket wrench | 10 | 1 | 71111237868 | $7.09 | Shop at ECS Tuning | ||||
| 32 | Socket wrench | 6 | 1 | 71111237869 | $7.09 | Shop at ECS Tuning | ||||
| 33 | Tool bag | 1 | 71111237870 | $48.89 | ENDED | Shop at ECS Tuning | ||||
| 34 | Combination pliers | 1 | 71111103092 | $25.24 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
