Car tool for BMW R45-R65LS..78-85 R65LS (1985)

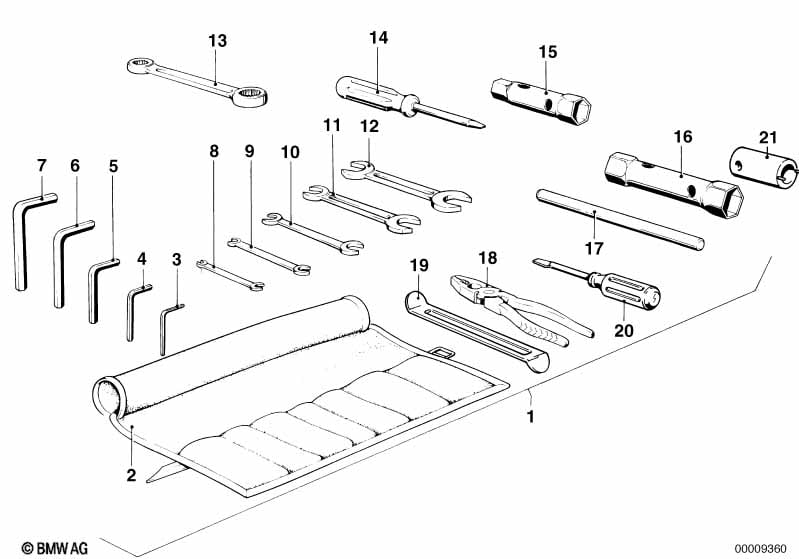

This Car tool technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool kit | 1 | 71111230685 | $169.55 | +core | Shop at ECS Tuning | ||||
| 02 | Tool bag | 1 | 71111230752 | $23.15 | Shop at ECS Tuning | |||||
| 03 | Inner hex spanner | SW3 | 1 | 71111237853 | $2.64 | Shop at ECS Tuning | ||||
| 04 | Inner hex spanner | SW4 | 1 | 71111237852 | $2.68 | Shop at ECS Tuning | ||||
| 05 | Inner hex spanner | SW5 | 1 | 07119906020 | $2.28 | Shop at ECS Tuning | ||||
| 06 | Inner hex spanner | SW6 | 1 | 71111237850 | $2.16 | Shop at ECS Tuning | ||||
| 07 | Inner hex spanner | SW8 | 1 | 71111237849 | $3.34 | Shop at ECS Tuning | ||||
| 08 | Double open-end wrench | 7X8 | 1 | 71111237841 | $8.45 | ENDED | Shop at ECS Tuning | |||
| 09 | Double open-end wrench | 10X11 | 1 | 71111237842 | ENDED | Shop at ECS Tuning | ||||
| 10 | Double open-end wrench | 12X14 | 1 | 07119999119 | $6.12 | Shop at ECS Tuning | ||||
| 11 | Double open-end wrench | 13X17 | 1 | 07119999122 | $6.89 | ENDED | Shop at ECS Tuning | |||
| 12 | Ring spanner | 19X22 | 1 | 71111237848 | $13.89 | ENDED | Shop at ECS Tuning | |||
| 13 | Ring spanner | 10X12 | 1 | 71111237847 | $11.97 | Shop at ECS Tuning | ||||
| 14 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 15 | Socket wrench | 1 | 71111237856 | $16.31 | ENDED | Shop at ECS Tuning | ||||
| 16 | Socket wrench | 13X19 | 1 | 71119090129 | $9.39 | ENDED | Shop at ECS Tuning | |||
| 18 | Combination pliers | 1 | 71111103092 | $25.24 | ENDED | Shop at ECS Tuning | ||||
| 19 | Tire lever | 1 | 71111237871 | $13.15 | Shop at ECS Tuning | |||||
| 20 | Screwdriver | 1 | 71119090147 | $3.80 | Shop at ECS Tuning | |||||
| 21 | Socket wrench | 1 | 71111242969 | $25.35 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
