Tool box large for BMW 3 Series E30 318i (1993)

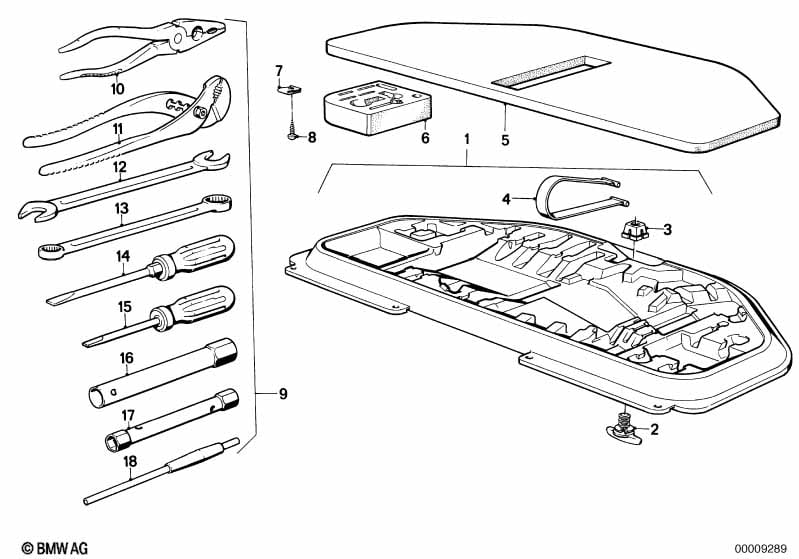

This Tool box large technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | 1 | 71111119997 | $64.88 | ENDED | Shop at ECS Tuning | ||||
| 02 | Screw plug | 1 | 71111117440 | $2.17 | Shop at ECS Tuning | |||||
| 03 | Threaded plug | 1 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 04 | Holding strap | 1 | 71111179443 | $2.55 | Shop at ECS Tuning | |||||
| 05 | Sound absorber | 1 | 71111122133 | $18.53 | ENDED | Shop at ECS Tuning | ||||
| 06 | Foam rubber insert | 1 | 71111127113 | ENDED | Shop at ECS Tuning | |||||
| 07 | Body nut | ST4,2-1-ZNS3 | 4 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST4,2X19 | 4 | 07119904431 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Combination pliers | 1 | 71111103092 | $25.24 | ENDED | Shop at ECS Tuning | ||||
| 11 | Water pump pliers | 1 | 71111103091 | $27.46 | Shop at ECS Tuning | |||||
| 12 | Open end spanner | 10-11 | 1 | 71111103078 | $13.52 | ENDED | Shop at ECS Tuning | |||
| 12 | Open end spanner | 12-13 | 1 | 71111103079 | $13.52 | Shop at ECS Tuning | ||||
| 12 | Double open-end wrench | 8X10 | 1 | 71111126208 | $13.52 | Shop at ECS Tuning | ||||
| 12 | Open end spanner | 17-19 | 1 | 09/1987 | 71111129076 | $10.14 | ENDED | Shop at ECS Tuning | ||
| 13 | Ring spanner | 8-10 | 1 | 71111103081 | $13.52 | ENDED | Shop at ECS Tuning | |||
| 13 | Ring spanner | 12-13 | 1 | 71111103082 | $13.52 | ENDED | Shop at ECS Tuning | |||
| 13 | Ring spanner | 17-19 | 1 | 71111103099 | $12.82 | ENDED | Shop at ECS Tuning | |||
| 14 | Screwdriver | 1 | 71111103190 | $15.47 | Shop at ECS Tuning | |||||
| 15 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 17 | Spark plug wrench | SW16 | 1 | 71111181460 | $18.50 | Shop at ECS Tuning | ||||
| 18 | Pin | 1 | 71111103085 | $17.51 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
