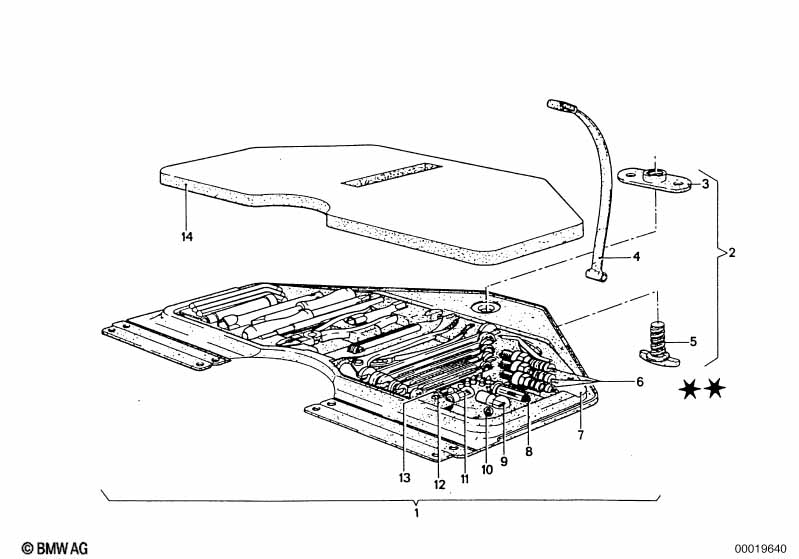

Car tool/Tool box for BMW 2.5CS-3.0CSL 3.0CSL (1973)
This Car tool/Tool box technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | OHNE INHALT | 1 | 71111102916 | Shop at ECS Tuning | |||||
| 03 | Threaded plug | 1 | 71111110445 | $1.99 | ENDED | Shop at ECS Tuning | ||||
| 04 | Holding strap | 1 | 71111113791 | ENDED | Shop at ECS Tuning | |||||
| 05 | Screw plug | 1 | 71111117440 | $2.17 | Shop at ECS Tuning | |||||
| 06 | Spark plug | BERU 175/14/3A | 3 | 12121258159 | $2.14 | ENDED | Shop at ECS Tuning | |||
| 06 | Spark plug | CHAMPION N10Y | 3 | 12121263070 | ENDED | Shop at ECS Tuning | ||||
| 06 | Spark plug | CHAMPION N-9YC | 3 | 12121338147 | ENDED | Shop at ECS Tuning | ||||
| 06 | Spark plug | BOSCH W7DC | 3 | 12129062594 | +core | Shop at ECS Tuning | ||||

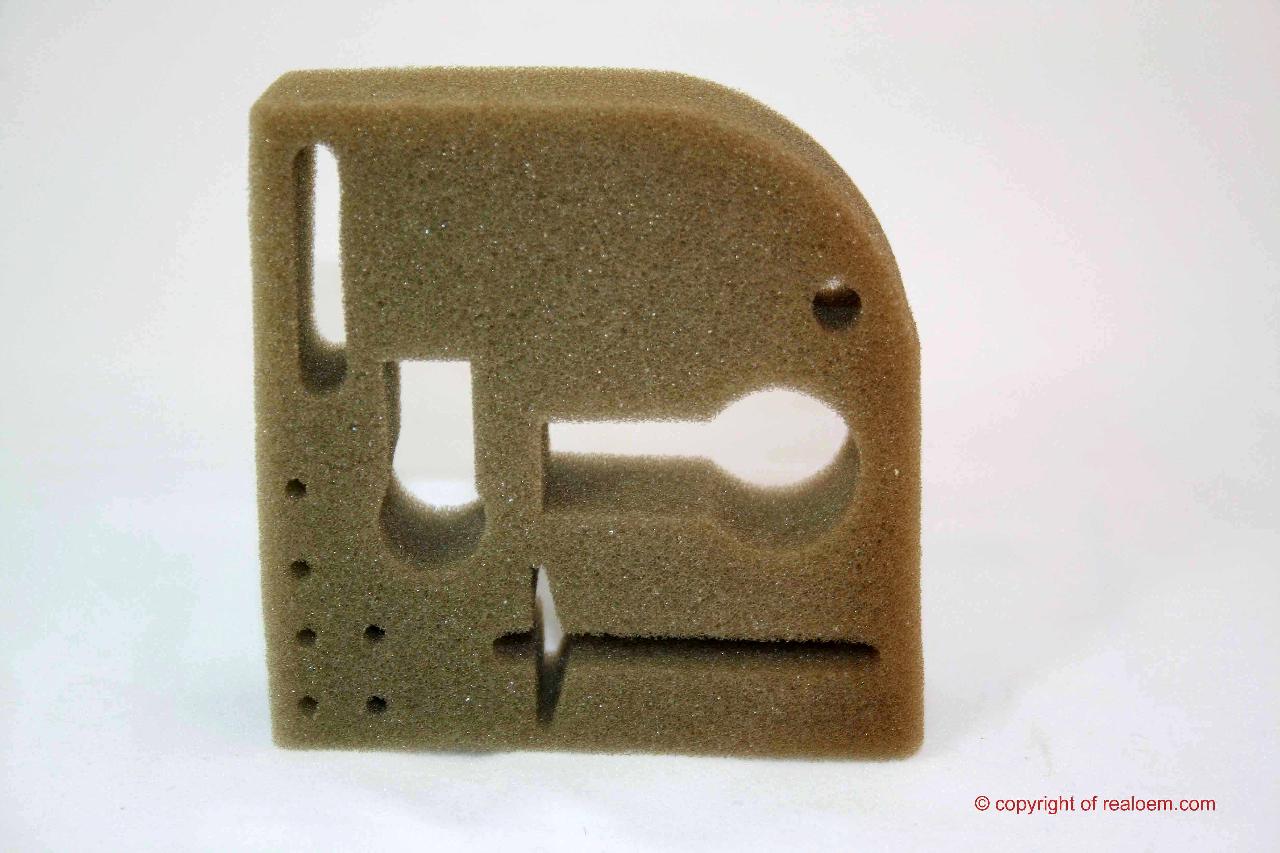

| 07 | Foam rubber insert | 1 | 71111114789 | $5.53 | ENDED | Shop at ECS Tuning | ||||

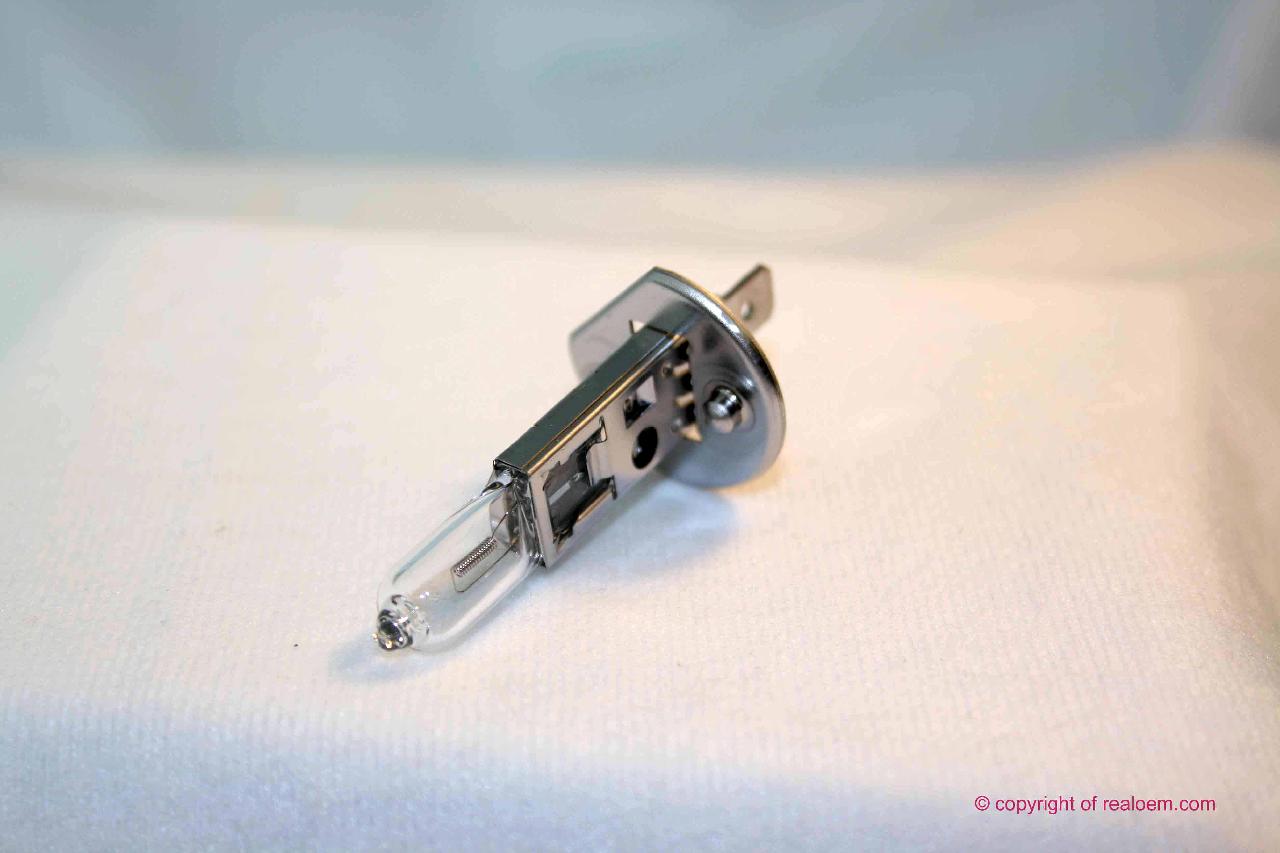

| 08 | Bulb | 12V 55W H1 | 1 | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 09 | Bulb | P21W/12V/21W | 1 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 09 | Longlife bulb | P21W/12V/21W | 1 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 10 | Bulb | 12V 4W | 1 | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 11 | Bulb | 12V 5W | 1 | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 12 | Bulb | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 13 | Fuse | 8A | 2 | 61138760138 | $1.83 | Shop at ECS Tuning | ||||
| 13 | Fuse | 16A | 2 | 61138760140 | $1.83 | Shop at ECS Tuning | ||||
| 13 | Fuse | 5A | 2 | 61138760141 | $0.14 | Shop at ECS Tuning | ||||
| 14 | Sound absorber | 1 | 71111113754 | $33.40 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
