Car tool/Tool box for BMW 2.5CS-3.0CSL 3.0CS (1973)

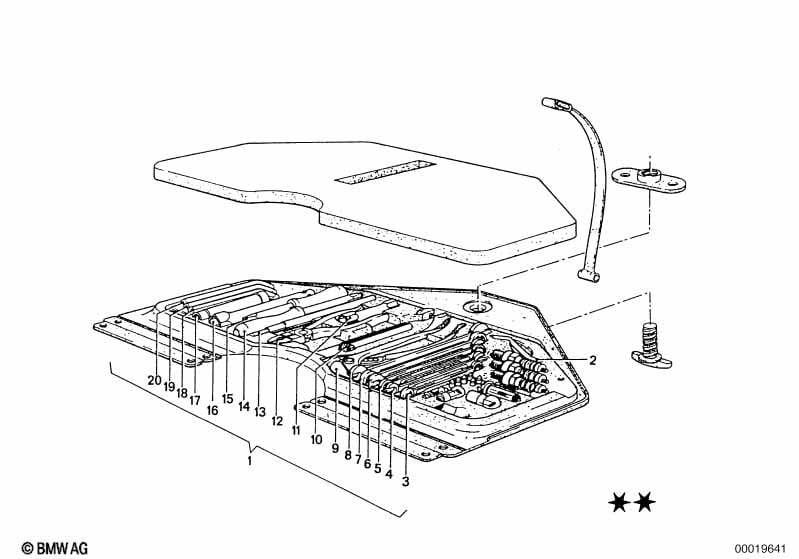

This Car tool/Tool box technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool kit | 1 | 71111115329 | $166.29 | Shop at ECS Tuning | |||||
| 02 | Pin | 1 | 71111103094 | $5.14 | Shop at ECS Tuning | |||||
| 03 | Ring spanner | 8-10 | 1 | 71111103081 | $13.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Open end spanner | 10-11 | 1 | 71111103078 | $13.52 | ENDED | Shop at ECS Tuning | |||
| 05 | Ring spanner | 12-13 | 1 | 71111103082 | $13.52 | ENDED | Shop at ECS Tuning | |||
| 06 | Open end spanner | 12-13 | 1 | 71111103079 | $13.52 | Shop at ECS Tuning | ||||
| 07 | Ring spanner | 17-19 | 1 | 71111103099 | $12.82 | ENDED | Shop at ECS Tuning | |||
| 08 | Open end spanner | 17-19 | 1 | 71111103080 | $13.52 | Shop at ECS Tuning | ||||
| 09 | Water pump pliers | 1 | 71111103091 | $27.46 | Shop at ECS Tuning | |||||
| 10 | Feeler gage | 1 | 71111103093 | ENDED | Shop at ECS Tuning | |||||
| 11 | Socket wrench | SW10 | 1 | 71111181418 | $8.53 | Shop at ECS Tuning | ||||
| 12 | Combination pliers | 1 | 71111103092 | $25.24 | ENDED | Shop at ECS Tuning | ||||
| 13 | Pin | 1 | 71111103085 | $17.51 | Shop at ECS Tuning | |||||
| 14 | Screwdriver | 1 | 71111103190 | $15.47 | Shop at ECS Tuning | |||||
| 15 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 16 | Spark plug wrench | SW21 | 1 | 71111179745 | $18.50 | Shop at ECS Tuning | ||||
| 17 | Spark plug socket | 1000-OHM | 1 | 12121356004 | $7.84 | ENDED | Shop at ECS Tuning | |||
| 18 | Inner hex spanner | 6 | 1 | 07119906026 | ENDED | Shop at ECS Tuning | ||||
| 19 | Inner hex spanner | 8 | 1 | 07119906032 | ENDED | Shop at ECS Tuning | ||||
| 20 | Inner hex spanner | 10 | 1 | 07119906036 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
