Lifting jack for BMW 7 Series E38 740i (2001)

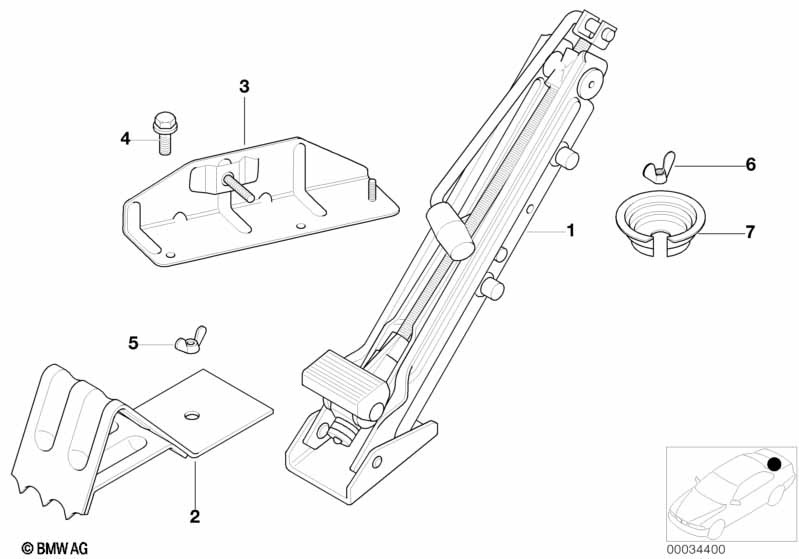

This Lifting jack technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Articulated car jack, steel | 1 | 09/1998 | 71111096489 | $76.97 | +core | Shop at ECS Tuning | |||
| 02 | Chock, aluminium | 1 | 09/1998 | 71126756392 | $11.50 | Shop at ECS Tuning | ||||
| 03 | Bracket car jack hold-down | 1 | 09/1998 | 71111095383 | $10.16 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X16 | 2 | 09/1998 | 07119905528 | $0.62 | Shop at ECS Tuning | |||
| 05 | Wing nut | M6 | 2 | 09/1998 | 07119924038 | $0.34 | Shop at ECS Tuning | |||
| 06 | Wing nut | M8 | 1 | 09/1998 | 71106781144 | $0.58 | Shop at ECS Tuning | |||
| 07 | Bracket for spare wheel | 1 | 09/1998 | 71151180625 | $3.62 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Lifting jack?
- This technical diagram illustrates the Lifting jack within the Equipment Parts group for the 7 Series E38 740i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Articulated car jack, steel (Part #71111096489).
- Which models use the hardware listed in this Lifting jack?
- The hardware and components featured in the Lifting jack are specific to the 7 Series E38 740i produced during 2001. These technical specifications ensure that parts like the Articulated car jack, steel (71111096489) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lifting jack assembly?
- Each item in the Lifting jack corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Articulated car jack, steel by locating its position on the schematic, which then links to the official BMW part number 71111096489 for the Equipment Parts section.
