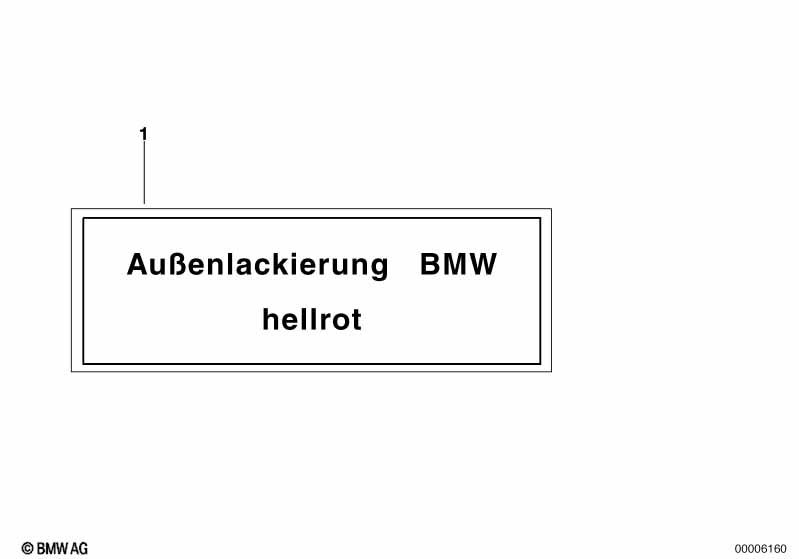

Label outer paint plain colour for BMW 3 Series E30 325i (1986)
This Label outer paint plain colour technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Label | HENNAROT | 1 | 51141867550 | $2.59 | Shop at ECS Tuning | ||||
| 01 | Label | SCHWARZ | 1 | 51141870903 | $2.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Label | ALPINWEISS | 1 | 51142121000 | $2.07 | Shop at ECS Tuning | ||||
| 01 | Label | SAFARIBEIGE | 1 | 51142121001 | ENDED | Shop at ECS Tuning | ||||
| 01 | Label | GAZELLENBEIGE | 1 | 51142121487 | $0.87 | ENDED | Shop at ECS Tuning | |||
| 01 | Label | AKAZIENGRUEN | 1 | 51142121488 | ENDED | Shop at ECS Tuning | ||||
| 01 | Label | KARMINROT | 1 | 51142121489 | $2.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Label | ZINNOBERROT | 1 | 51142121490 | $2.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Label | SATURNBLAU | 1 | 51142121491 | $0.80 | ENDED | Shop at ECS Tuning | |||
| 01 | Label | ATLANTISBLAU | 1 | 51142121921 | $2.07 | Shop at ECS Tuning | ||||
| 01 | Label | WEINROT | 1 | 51142121922 | $2.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Label | MINERALBLAU | 1 | 51142121923 | $2.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Label | ALPINWEISS 2 | 1 | 51142121931 | $2.07 | Shop at ECS Tuning | ||||
| 01 | Label | NAUTICGRUEN | 1 | 71212124900 | $3.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Label | BRILLANTROT | 1 | 71212124901 | $3.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Label | VULKANGRAU | 1 | 71212124909 | $3.73 | Shop at ECS Tuning | ||||
| 01 | Label | TIZIANROT | 1 | 71212124910 | $0.95 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
