Car tool for BMW 5 Series E60 523i (2007)

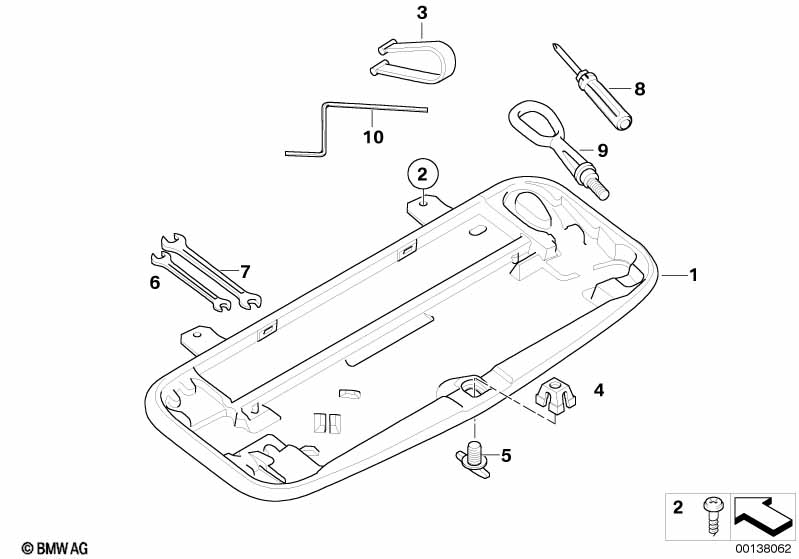

This Car tool technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | 1 | 71116761420 | $56.56 | Shop at ECS Tuning | |||||
| 02 | Screw | 4,2X16 | 2 | 71116750167 | $0.50 | Shop at ECS Tuning | ||||
| 03 | Holding strap | 1 | 71111180244 | $2.67 | Shop at ECS Tuning | |||||
| 04 | Threaded plug | 1 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 05 | Screw plug | 1 | 71111179444 | $2.17 | Shop at ECS Tuning | |||||
| 06 | Double open-end wrench | 8X10 | 1 | 71111112893 | $5.40 | Shop at ECS Tuning | ||||
| 06 | Open end spanner | 10-13 | 1 | 71111182747 | $5.40 | Shop at ECS Tuning | ||||
| 07 | Open end spanner | 12-13 | 1 | 71111126148 | $5.90 | Shop at ECS Tuning | ||||
| 08 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 09 | Towing hinge | 1 | 72157070643 | $23.87 | Shop at ECS Tuning | |||||
| 10 | Emergency tool electr.sliding roof | 1 | 04/2007 | 54137199324 | $8.97 | ENDED | Shop at ECS Tuning | |||
| 10 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
