Car tool/Lifting jack for BMW 5 Series E28 525e (1989)

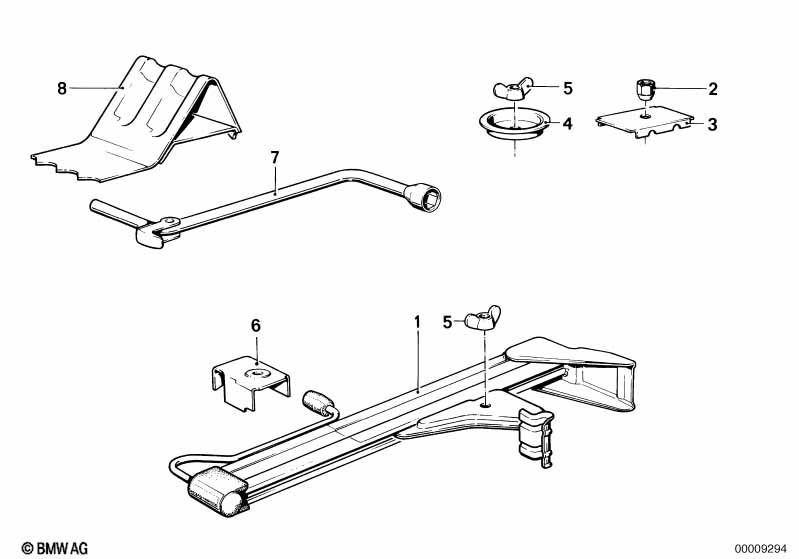

This Car tool/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lifting jack | 1 | 71122904649 | Shop at ECS Tuning | ||||||
| 05 | Wing nut | M8 | 1 | 07119924040 | $1.42 | Shop at ECS Tuning | ||||
| 05 | Wing nut | M8 | 1 | 71151179257 | $3.25 | ENDED | Shop at ECS Tuning | |||
| 06 | Bracket car jack hold-down | 1 | 71121112226 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| 07 | Crank | 1 | 71122903704 | Shop at ECS Tuning | ||||||
| 08 | Chock | 1 | 71123901039 | Shop at ECS Tuning | ||||||
| 08 | Chock, aluminium | 1 | 71126756392 | $11.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 525e Car tool/Lifting jack?
- This technical diagram illustrates the Car tool/Lifting jack within the Equipment Parts group for the 5 Series E28 525e produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Lifting jack (Part #71122904649).
- Which models use the hardware listed in this Car tool/Lifting jack?
- The hardware and components featured in the Car tool/Lifting jack are specific to the 5 Series E28 525e produced during 1989. These technical specifications ensure that parts like the Lifting jack (71122904649) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Car tool/Lifting jack assembly?
- Each item in the Car tool/Lifting jack corresponds to the numbered list below the illustration. For the 5 Series E28 525e, you can identify the Lifting jack by locating its position on the schematic, which then links to the official BMW part number 71122904649 for the Equipment Parts section.
