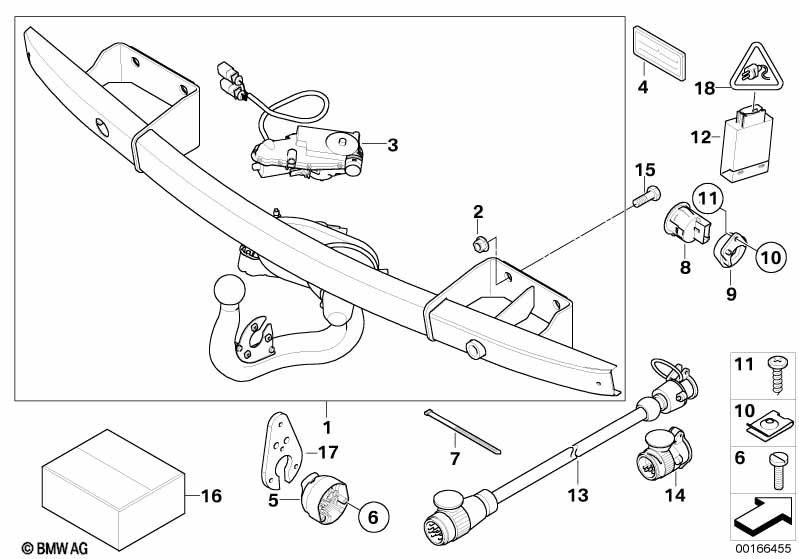

Single parts of trailer hitch for BMW 3 Series E90 330d (2008)
This Single parts of trailer hitch technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Towing hitch, swiveling | 1 | 71606791155 | +core | Shop at ECS Tuning | |||||
| 02 | Hex nut | M12 | 6 | 71606772024 | $7.95 | Shop at ECS Tuning | ||||
| 03 | Unlocking unit for ball head | 1 | 71606784797 | +core | Shop at ECS Tuning | |||||
| 04 | Drawbar load ratings plate | 75KG | 1 | 71601135082 | Shop at ECS Tuning | |||||
| 05 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 06 | Countersunk screw | M5 X 30 | 3 | 07119904940 | $0.44 | Shop at ECS Tuning | ||||
| 07 | Cable tie | L=200MM/B=4,6MM | 3 | 61138383722 | $0.08 | Shop at ECS Tuning | ||||
| 08 | Switch, trailer hitch | 1 | 61319272858 | Shop at ECS Tuning | ||||||
| 09 | Bracket, switch, trailer hitch | 1 | 71606774671 | Shop at ECS Tuning | ||||||
| 10 | Body nut | ST4.8 ZNS3 | 1 | 07146979392 | $0.24 | Shop at ECS Tuning | ||||
| 11 | Combi. fillister head self-tapping screw | ST4, 8X16MM | 1 | 51419143799 | $0.22 | Shop at ECS Tuning | ||||
| 12 | Control unit AHK | 1 | 71606857227 | +core | Shop at ECS Tuning | |||||
| 13 | Adapter | 1 | 61131382153 | $145.08 | Shop at ECS Tuning | |||||
| 14 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | Shop at ECS Tuning | ||||
| 15 | Hexagon screw with flange | M12X1,5X41 ZNS3 | 6 | 34116797579 | Shop at ECS Tuning | |||||
| only applies to Towing hitch, detachable |
||||||||||
| 17 | Plug socket bracket | 1 | 71606769304 | Shop at ECS Tuning | ||||||
| 18 | Socket housing | 16 POL./Z-CODE | 1 | 61136901662 | $2.55 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | 4 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 2,5-4,0 MM | 1 | 61136913612 | $0.50 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 14 | 61136931880 | Shop at ECS Tuning | |||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 2 | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
