Trailer coupling, electric swiveling for BMW 5 Series E61 LCI 525d (2010)

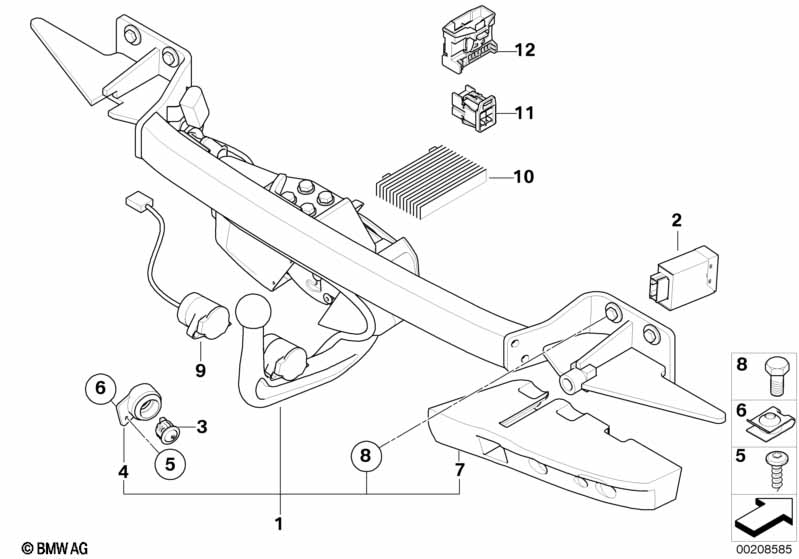

This Trailer coupling, electric swiveling technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package and M Aerodynamics package |
P337A=No S715A=No |
||||||||
| 01 | Trailer coupling, electric swiveling | 1 | 71606795731 | Shop at ECS Tuning | ||||||
| 02 | Control unit AHK | 1 | 71606793271 | ENDED | Shop at ECS Tuning | |||||
| 03 | Switch, trailer hitch | 1 | 61319272858 | Shop at ECS Tuning | ||||||
| 04 | Bracket, switch, trailer hitch | 1 | 71606774671 | Shop at ECS Tuning | ||||||
| 05 | Combi. fillister head self-tapping screw | ST4, 8X16MM | 1 | 51419143799 | $0.22 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4.8 ZNS3 | 1 | 07146979392 | $0.24 | Shop at ECS Tuning | ||||
| 07 | Impact absorber, left | 1 | 71606776683 | Shop at ECS Tuning | ||||||
| 07 | Impact absorber, right | 1 | 71606776684 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M10 X 25 | 8 | 71606759754 | $1.53 | Shop at ECS Tuning | ||||
| 09 | Repair kit for power socket | WESTFALIA | 1 | 71606875018 | Shop at ECS Tuning | |||||
| 10 | Rubber boot with frame | 1 | 71606884467 | Shop at ECS Tuning | ||||||
| 11 | Socket housing | 4 POL. MPQ | 1 | 61136931890 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 2,5-4,0 MM | X | 61136913612 | $0.50 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | X | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | X | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
| 12 | Socket housing | 16 POL./Z-CODE | 1 | 61136901662 | $2.55 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | X | 61136931880 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
