Car tool for BMW 7 Series F01 LCI 750i (2015)

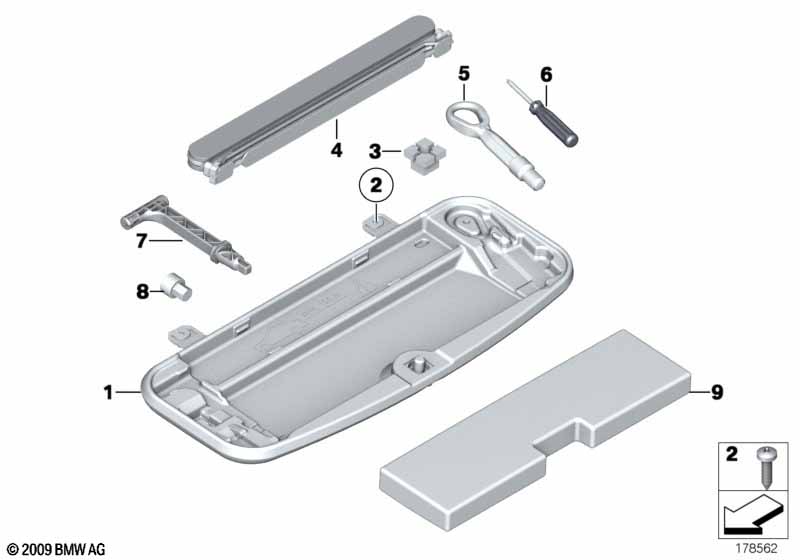

This Car tool technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 LCI 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | 1 | 11/2009 | 71106784443 | $58.26 | Shop at ECS Tuning | ||||
| 02 | Screw | 4,2X16 | 2 | 71116750167 | $0.50 | Shop at ECS Tuning | ||||
| 03 | Threaded plug | 1 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 04 | Warning triangle with container | ECE R27 | 1 | 11/2009 | 71606770487 | Shop at ECS Tuning | ||||
| 05 | Towing hinge | 1 | 72157953893 | Shop at ECS Tuning | ||||||
| 06 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F01 LCI 750i Car tool?
- This technical diagram illustrates the Car tool within the Equipment Parts group for the 7 Series F01 LCI 750i produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Tool box (Part #71106784443).
- Which models use the hardware listed in this Car tool?
- The hardware and components featured in the Car tool are specific to the 7 Series F01 LCI 750i produced during 2015. These technical specifications ensure that parts like the Tool box (71106784443) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Car tool assembly?
- Each item in the Car tool corresponds to the numbered list below the illustration. For the 7 Series F01 LCI 750i, you can identify the Tool box by locating its position on the schematic, which then links to the official BMW part number 71106784443 for the Equipment Parts section.
