Trailer coupling, electric swiveling for BMW 5 Series F11 528i (2011)

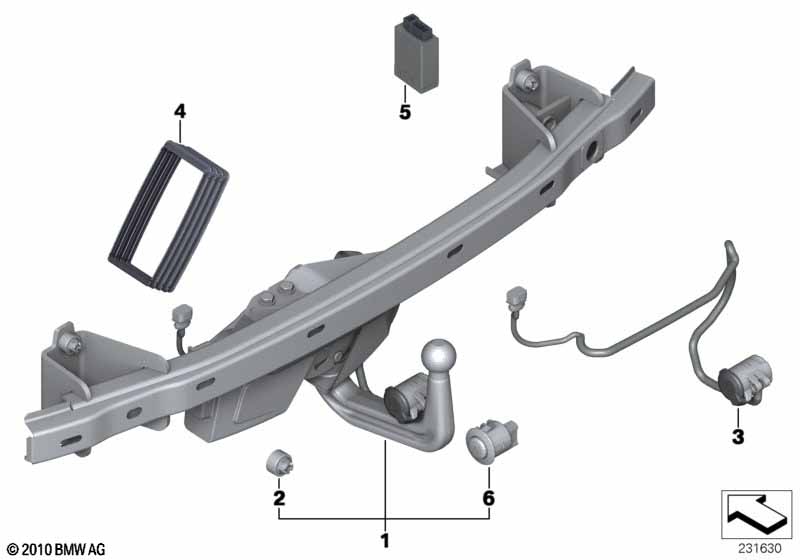

This Trailer coupling, electric swiveling technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Trailer coupling |
S3ACA=Yes |
||||||||
| 01 | Set trailer tow hitches electr.swivel. | 1 | 71606874904 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Control unit AHK | 1 | 71606856980 | +core | Shop at ECS Tuning | |||||
| 02 | Hex nut | M12X1,5 | 4 | 71606795381 | Shop at ECS Tuning | |||||
| 03 | Repair kit for power socket | WESTFALIA | 1 | 71606875018 | Shop at ECS Tuning | |||||
| 04 | Rubber boot with frame | 1 | 71606884467 | Shop at ECS Tuning | ||||||
| 05 | Control unit AHK | 1 | 71606856980 | +core | Shop at ECS Tuning | |||||
| 06 | Switch, trailer hitch | 1 | 61319272858 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
