Tire Mobility Set for BMW 1 Series F20 LCI 118d (2016)

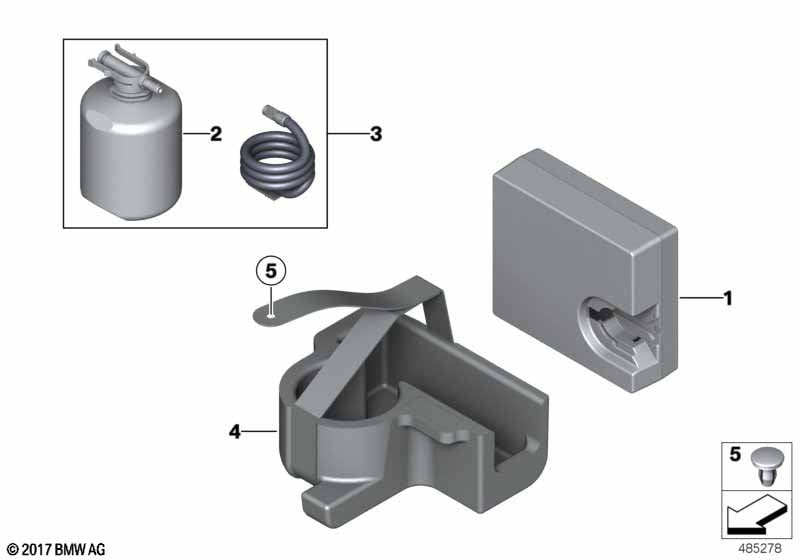

This Tire Mobility Set technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Tire with run-flat functionality |
S258A=No |
||||||||
| 01 | Compressor Mobility System | 1 | 71106850380 | +core | Shop at ECS Tuning | |||||
| 02 | Tire inflating bottle | 350ML | 1 | 71106850379 | +core | Shop at ECS Tuning | ||||
| 03 | Tire inflating bottle | 350ML | 1 | 71106888308 | Shop at ECS Tuning | |||||
| 04 | Storage tray, Mobility System | 1 | 71106794839 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hook&loop fastener | 1 | 71106850350 | Shop at ECS Tuning | ||||||
| 05 | Expanding rivet | D = 8MM | 1 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
