Towing hitch, detachable for BMW 2 Series F45 Active Tourer 225iX (2018)

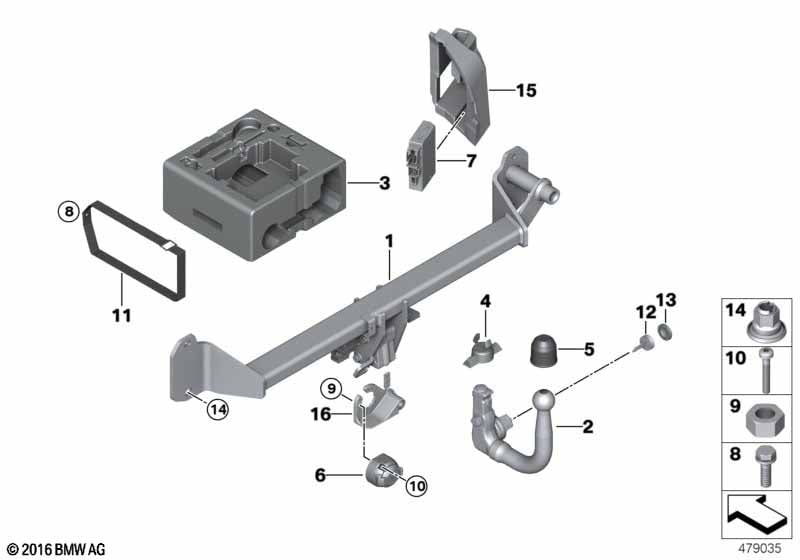

This Towing hitch, detachable technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 225iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Replacement for trailer hitch 750kg. | ||||||||||
| 01 | Kit trailer hitch removable 750 kg | 1 | 51125A55239 | Shop at ECS Tuning | ||||||
| Do not use for replacement of trailer hitch 750kg. |
||||||||||
| 01 | Scdel. of tow.hitch+detach.ball head | 1 | 71606870334 | Shop at ECS Tuning | ||||||
| 02 | Removable ball | 1 | 04/2018 | 71606854685 | Shop at ECS Tuning | |||||
| 02 | Removable ball | 1 | 51129463513 | Shop at ECS Tuning | ||||||
| 03 | Oddments tray | 1 | 71606877572 | Shop at ECS Tuning | ||||||
| 04 | Blind plug | 1 | 51129478015 | Shop at ECS Tuning | ||||||
| 05 | Trailer hitch ball protection cap | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 06 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 07 | Control unit for trailer hitch | 1 | 63119463373 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 10 | Countersunk screw | M5 X 35 | 1 | 07119904582 | Shop at ECS Tuning | |||||
| 11 | Hook&loop fastener | 1 | 71106862422 | Shop at ECS Tuning | ||||||
| 12 | Key (Code) | 1 | 71606775871 | Shop at ECS Tuning | ||||||
| 13 | Covering cap | 1 | 71606873893 | Shop at ECS Tuning | ||||||
| 14 | Hex nut | M12X1,5 | 4 | 71606795381 | Shop at ECS Tuning | |||||
| 15 | Bracket for module | 1 | 71606860972 | Shop at ECS Tuning | ||||||
| 16 | Socket holder | 1 | 71606885879 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer 225iX Towing hitch, detachable?
- This technical diagram illustrates the Towing hitch, detachable within the Equipment Parts group for the 2 Series F45 Active Tourer 225iX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Kit trailer hitch removable 750 kg (Part #51125A55239).
- Which models use the hardware listed in this Towing hitch, detachable?
- The hardware and components featured in the Towing hitch, detachable are specific to the 2 Series F45 Active Tourer 225iX produced during 2018. These technical specifications ensure that parts like the Kit trailer hitch removable 750 kg (51125A55239) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Towing hitch, detachable assembly?
- Each item in the Towing hitch, detachable corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer 225iX, you can identify the Kit trailer hitch removable 750 kg by locating its position on the schematic, which then links to the official BMW part number 51125A55239 for the Equipment Parts section.
