Towing hitch, detachable for BMW MINI Clubman F54 Cooper (2019)

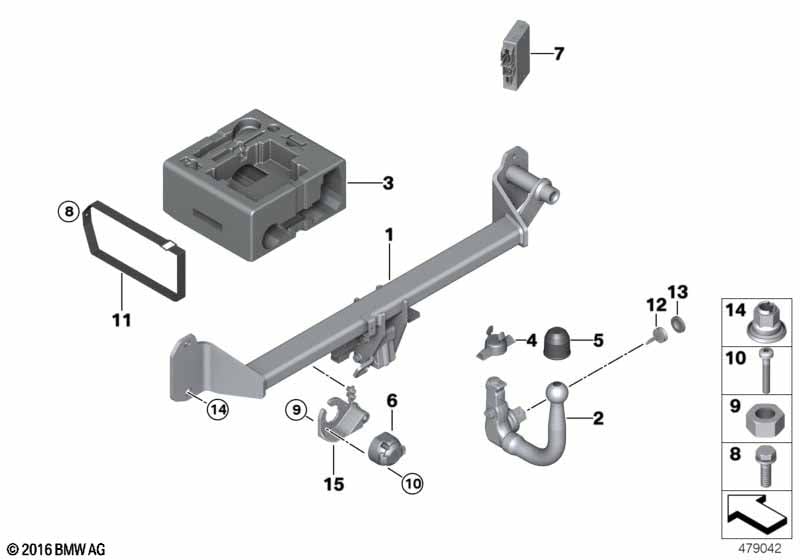

This Towing hitch, detachable technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Scdel. of tow.hitch+detach.ball head | 1 | 71606875020 | Shop at ECS Tuning | ||||||
| 02 | Removable ball | 1 | 51129463513 | Shop at ECS Tuning | ||||||
| 03 | Oddments tray | 1 | 71606877572 | Shop at ECS Tuning | ||||||
| 04 | Blind plug | 1 | 51129478015 | Shop at ECS Tuning | ||||||
| 05 | Trailer hitch ball protection cap | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 06 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 07 | Control unit for trailer hitch | 1 | 63119463373 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 10 | Countersunk screw | M5 X 35 | 1 | 07119904582 | Shop at ECS Tuning | |||||
| 11 | Hook&loop fastener | 1 | 71106862422 | Shop at ECS Tuning | ||||||
| 12 | Key (Code) | 1 | 71606775871 | Shop at ECS Tuning | ||||||
| 13 | Covering cap | 1 | 71606873893 | Shop at ECS Tuning | ||||||
| 14 | Hex nut | M12X1,5 | 4 | 71606795381 | Shop at ECS Tuning | |||||
| 15 | Socket holder | 1 | 71606885879 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 Cooper Towing hitch, detachable?
- This technical diagram illustrates the Towing hitch, detachable within the Equipment Parts group for the MINI Clubman F54 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Scdel. of tow.hitch+detach.ball head (Part #71606875020).
- Which models use the hardware listed in this Towing hitch, detachable?
- The hardware and components featured in the Towing hitch, detachable are specific to the MINI Clubman F54 Cooper produced during 2019. These technical specifications ensure that parts like the Scdel. of tow.hitch+detach.ball head (71606875020) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Towing hitch, detachable assembly?
- Each item in the Towing hitch, detachable corresponds to the numbered list below the illustration. For the MINI Clubman F54 Cooper, you can identify the Scdel. of tow.hitch+detach.ball head by locating its position on the schematic, which then links to the official BMW part number 71606875020 for the Equipment Parts section.
