Trailer coupling, electric swiveling for BMW 5 Series G30 LCI 520i (2023)

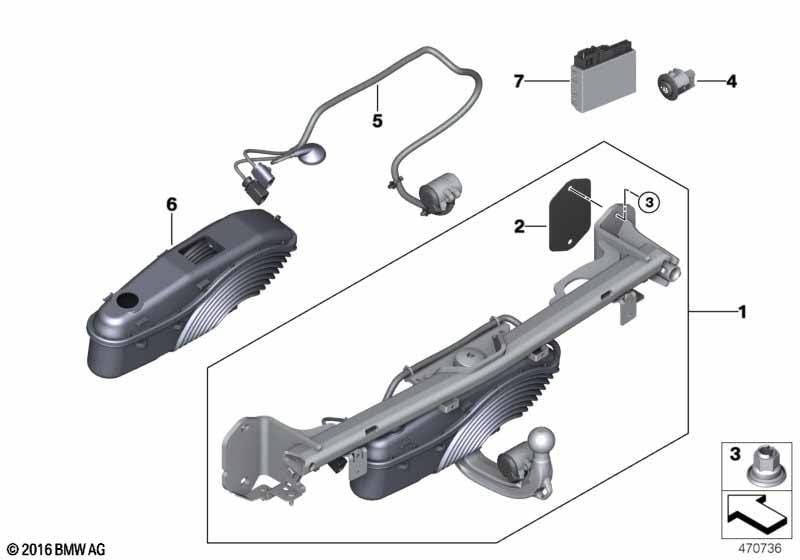

This Trailer coupling, electric swiveling technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Trailer coupling |
S3ACA=Yes |
||||||||
| 01 | Set of trailer couplings, electr. swivel | 1 | 71606888468 | Shop at ECS Tuning | ||||||
| 02 | Seal | 2 | 51125A7CEA6 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | M12X1,5 | 4 | 71606795381 | Shop at ECS Tuning | |||||
| 04 | Switch, trailer hitch | 1 | 61319272858 | Shop at ECS Tuning | ||||||
| 05 | Repair kit for power socket | WESTFALIA | 1 | 71606875018 | Shop at ECS Tuning | |||||
| 06 | Rubber boot with frame | 1 | 71606884469 | Shop at ECS Tuning | ||||||
| 07 | Control unit for trailer hitch | 1 | 63115A056C9 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 520i Trailer coupling, electric swiveling?
- This technical diagram illustrates the Trailer coupling, electric swiveling within the Equipment Parts group for the 5 Series G30 LCI 520i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Set of trailer couplings, electr. swivel (Part #71606888468).
- Which models use the hardware listed in this Trailer coupling, electric swiveling?
- The hardware and components featured in the Trailer coupling, electric swiveling are specific to the 5 Series G30 LCI 520i produced during 2023. These technical specifications ensure that parts like the Set of trailer couplings, electr. swivel (71606888468) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trailer coupling, electric swiveling assembly?
- Each item in the Trailer coupling, electric swiveling corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 520i, you can identify the Set of trailer couplings, electr. swivel by locating its position on the schematic, which then links to the official BMW part number 71606888468 for the Equipment Parts section.
