Towing hitch, detachable for BMW 5 Series G30 520dX (2020)

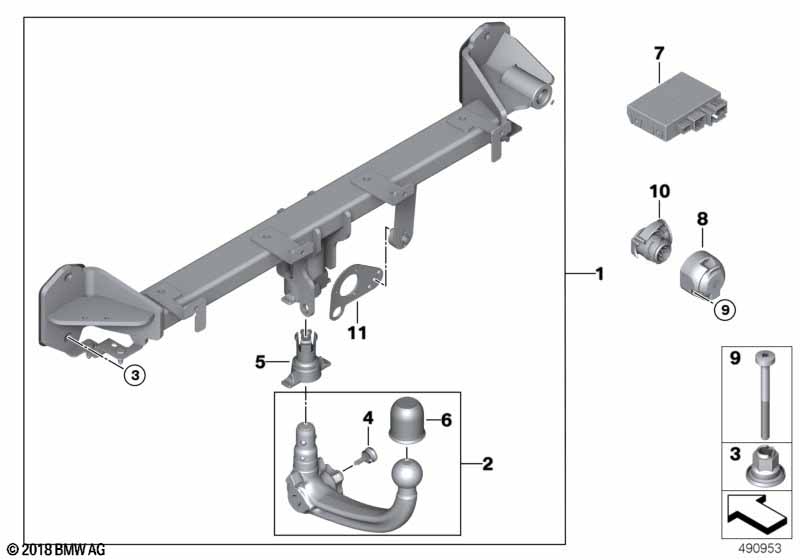

This Towing hitch, detachable technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Do not use for replacement of trailer hitch 750kg. |
||||||||||
| 01 | Kit for trailer coupling, removable | 1 | 71606881451 | Shop at ECS Tuning | ||||||
| Replacement for trailer hitch 750kg. | ||||||||||
| 01 | Kit trailer hitch removable 750 kg | 1 | 71605A3CF35 | Shop at ECS Tuning | ||||||
| 02 | Removable ball | 1 | 71606889281 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | M12X1,5 | 4 | 71606795381 | Shop at ECS Tuning | |||||
| 04 | Key (Code) | 1 | 71606775871 | Shop at ECS Tuning | ||||||
| 05 | Blind plug | 1 | 71606765338 | Shop at ECS Tuning | ||||||
| 07 | Control unit for trailer hitch | 1 | 63115A056C9 | Shop at ECS Tuning | ||||||
| 08 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 09 | Countersunk screw | M5 X 35 | 3 | 07119904582 | Shop at ECS Tuning | |||||
| 10 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | Shop at ECS Tuning | ||||
| 11 | Socket holder | 1 | 71609498207 | Shop at ECS Tuning | ||||||
