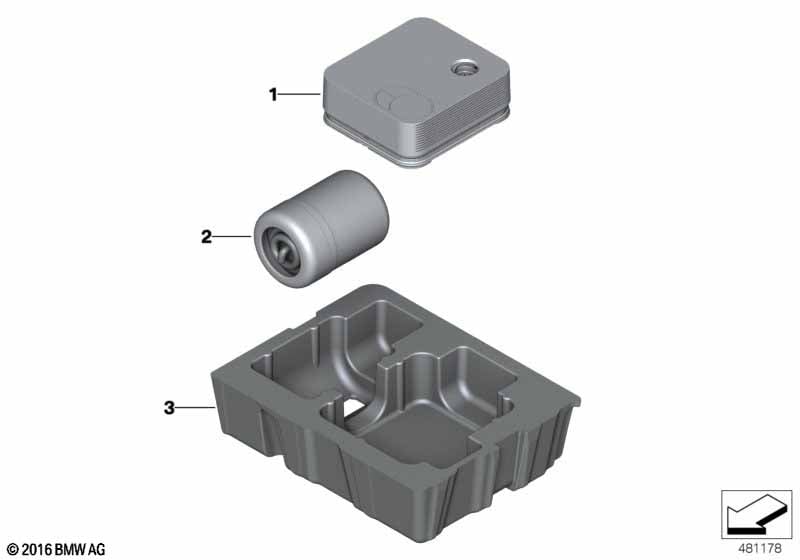

Mobility system for BMW 5 Series G31 Touring 520dX (2020)
This Mobility system technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Tire repair kit |
S2VCA=Yes |
|||||||||
| 01 | Compressor | 1 | 71106898012 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Tire inflating bottle | 350ML | X | 71105A9BCA1 | Shop at ECS Tuning | |||||
| -- | Tire sealant bottle | 350ML | X | 71106898013 | ENDED | Shop at ECS Tuning | ||||
| 02 | Tire sealant bottle | 350ML | 1 | 08/2023 | 71106898013 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Compressor | X | 08/2023 | 71106898012 | Shop at ECS Tuning | |||||
| 02 | Tire inflating bottle | 350ML | 1 | 71105A9BCA1 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Compressor | X | 71106898012 | Shop at ECS Tuning | ||||||
| 03 | Storage tray, Mobility System | 1 | 71106861296 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hook&loop fastener | 1 | 71106874895 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
