Trailer coupling, electric swiveling for BMW 6 Series G32 GT 630i (2020)

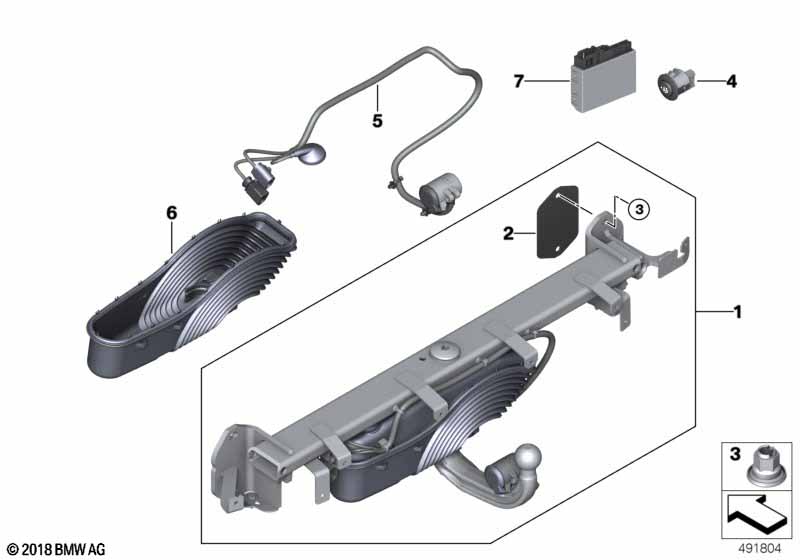

This Trailer coupling, electric swiveling technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | An exchange of the "Lüfterzarge mit Lüfter" and "Kühlmittelkühler / ausgelagerten Kühlmittelkühler" may be necessary. If on the picture panel in the main group 17 there is a "Lüfterzarge mit Lüfter" and "Kühlmittelkühler / ausgelagerten Kühlmittelkühler" designated to the OE trailer tow hitch, then this part number has to be ordered and installed as well. For vehicles with Trailer coupling |
S3ACA=Yes |
||||||||
| 01 | Set of trailer couplings, electr. swivel | 1 | 71606875627 | Shop at ECS Tuning | ||||||
| 02 | Seal | 2 | 51125A7CEA6 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | M12X1,5 | 4 | 71606795381 | Shop at ECS Tuning | |||||
| 04 | Switch, trailer hitch | 1 | 61319272858 | Shop at ECS Tuning | ||||||
| 05 | Repair kit for power socket | WESTFALIA | 1 | 71606875018 | Shop at ECS Tuning | |||||
| 06 | Rubber boot with frame | 1 | 71606884469 | Shop at ECS Tuning | ||||||
| 07 | Control unit for trailer hitch | 1 | 63115A056C9 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series G32 GT 630i Trailer coupling, electric swiveling?
- This technical diagram illustrates the Trailer coupling, electric swiveling within the Equipment Parts group for the 6 Series G32 GT 630i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Set of trailer couplings, electr. swivel (Part #71606875627).
- Which models use the hardware listed in this Trailer coupling, electric swiveling?
- The hardware and components featured in the Trailer coupling, electric swiveling are specific to the 6 Series G32 GT 630i produced during 2020. These technical specifications ensure that parts like the Set of trailer couplings, electr. swivel (71606875627) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trailer coupling, electric swiveling assembly?
- Each item in the Trailer coupling, electric swiveling corresponds to the numbered list below the illustration. For the 6 Series G32 GT 630i, you can identify the Set of trailer couplings, electr. swivel by locating its position on the schematic, which then links to the official BMW part number 71606875627 for the Equipment Parts section.
