Rear carrier preparations for BMW MINI Countryman F60 LCI Cooper (2023)

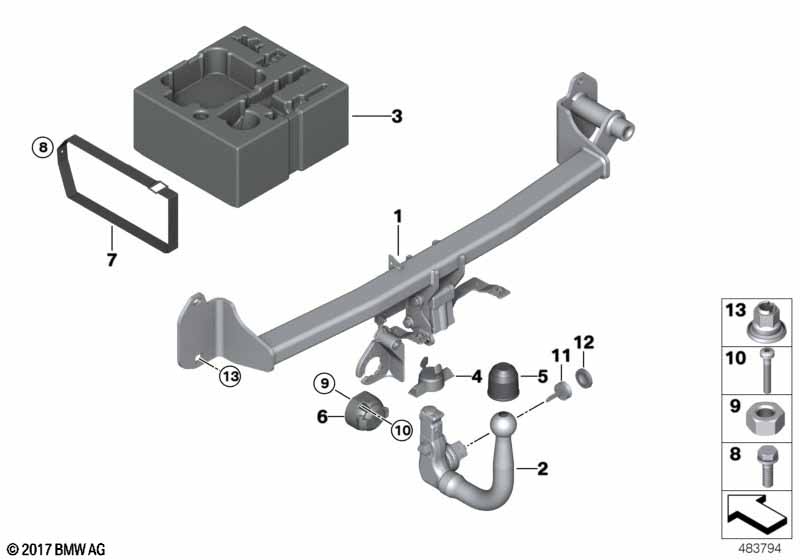

This Rear carrier preparations technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Preparations for rear luggage carrier |
S3ARA=Yes |
||||||||
| 01 | Cross member, rear rack prep. | 1 | 71606884563 | Shop at ECS Tuning | ||||||
| 02 | Ball hitch rear carrier | 1 | 71606870724 | Shop at ECS Tuning | ||||||
| 03 | Oddments tray | 1 | 71606877572 | Shop at ECS Tuning | ||||||
| 04 | Blind plug | 1 | 51129478015 | Shop at ECS Tuning | ||||||
| 05 | Trailer hitch ball protection cap | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 06 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 07 | Hook&loop fastener | 1 | 71106862422 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 10 | Countersunk screw | M5 X 35 | 1 | 07119904582 | Shop at ECS Tuning | |||||
| 11 | Key (Code) | 1 | 71606775871 | Shop at ECS Tuning | ||||||
| 12 | Covering cap | 1 | 71606873893 | Shop at ECS Tuning | ||||||
| 13 | Hex nut | M12X1,5 | 4 | 71606795381 | Shop at ECS Tuning | |||||
