Car tool/Lifting jack for BMW 7 Series G70 740d (2022)

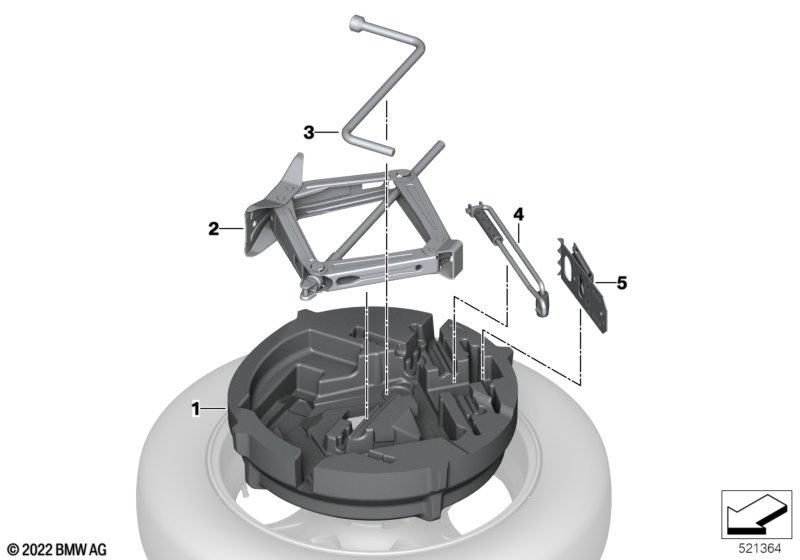

This Car tool/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emergency spare wheel |
S300A=Yes |
|||||||||
| 01 | Storage tray emergency wheel | 1 | 71105A22458 | Shop at ECS Tuning | ||||||
| 02 | Scissors-type jack | 1 | 71106889708 | Shop at ECS Tuning | ||||||
| 03 | Lifting jack crank | 1 | 71126886420 | Shop at ECS Tuning | ||||||
| 04 | Crank for wheel bolt with width A/F 17 | 1 | 71126788617 | $12.83 | Shop at ECS Tuning | |||||
| 05 | Chock | 1 | 71121507292 | $11.50 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740d Car tool/Lifting jack?
- This technical diagram illustrates the Car tool/Lifting jack within the Equipment Parts group for the 7 Series G70 740d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Storage tray emergency wheel (Part #71105A22458).
- Which models use the hardware listed in this Car tool/Lifting jack?
- The hardware and components featured in the Car tool/Lifting jack are specific to the 7 Series G70 740d produced during 2022. These technical specifications ensure that parts like the Storage tray emergency wheel (71105A22458) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Car tool/Lifting jack assembly?
- Each item in the Car tool/Lifting jack corresponds to the numbered list below the illustration. For the 7 Series G70 740d, you can identify the Storage tray emergency wheel by locating its position on the schematic, which then links to the official BMW part number 71105A22458 for the Equipment Parts section.
