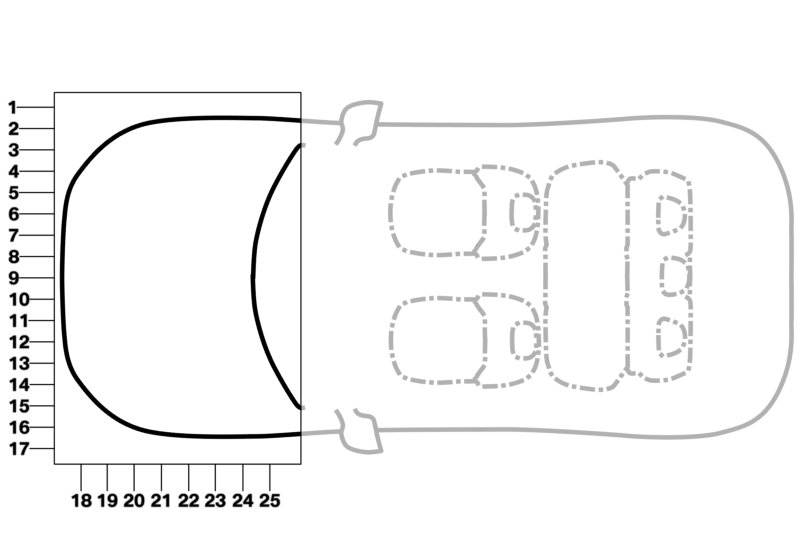

Various signs front for BMW 1 Series F70 116 (2025)
This Various signs front technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 116. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Car ident. number visible from outside |
S8SMA=No |
|||||||||
| 01 | Label "Chassis Number" | 1 | 71219806621 | Shop at ECS Tuning | ||||||
| For vehicles with Car ident. number visible from outside |
S8SMA=Yes |
|||||||||
| 01 | Label "Chassis Number" | 1 | 71217352915 | Shop at ECS Tuning | ||||||
| For vehicles with National version England / Ireland |
L812A=Yes |
|||||||||
| 02 | Foam belt | 1 | 07147381038 | Shop at ECS Tuning | ||||||
| For vehicles with Refrigerant R1234yf |
S8R9A=Yes |
|||||||||
| 04 | Label, coolant | 0,45+/-0,015KG | 1 | 09/2024 | 07/2025 | 71235B61F24 | Shop at ECS Tuning | |||
| For vehicles with Country control for Singapore 00780 and COC ADDITIONAL SCOPES |
S8LSA=No S8R3A=Yes |
|||||||||
| 04 | Label, coolant | R1234YF FGAS | 1 | 03/2025 | 71235B6C185 | Shop at ECS Tuning | ||||
