Various signs front for BMW 5 Series G99 M5 Touring M5 (2025)

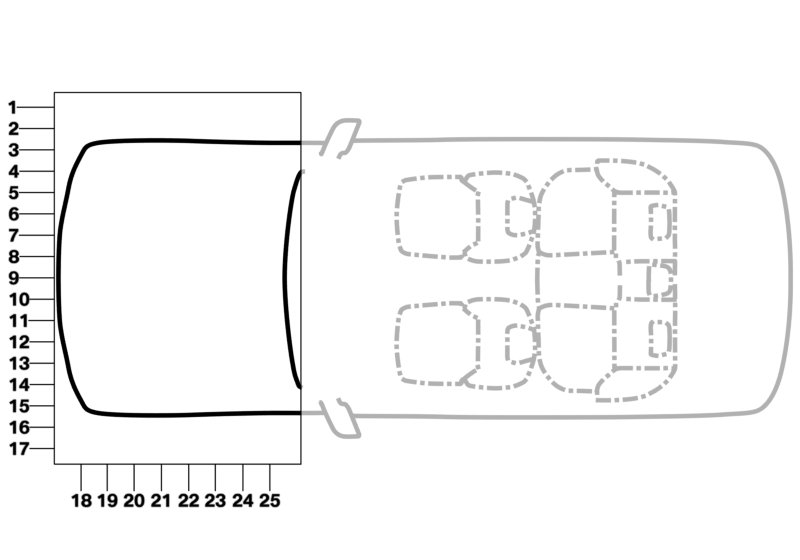

This Various signs front technical drawing provides a detailed breakdown of the assembly for the 5 Series G99 M5 Touring M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Car ident. number visible from outside |
S8SMA=Yes |
|||||||||
| 01 | Label "Chassis Number" | 1 | 71217352915 | Shop at ECS Tuning | ||||||
| 04 | Label "Radiator Fan" | 1 | 71227603774 | Shop at ECS Tuning | ||||||
| For vehicles with Country control for Mexico 10360 |
S8LMA=Yes |
|||||||||
| 10 | Label "battery" | 1 | 71235A17FA6 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 11 | Label, coolant | 1 | 01/2025 | 71239460901 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 11 | Label, coolant | 0,8+/-0,015KG | 1 | 11/2024 | 71235B61F08 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Gulf version and Country-specific equipment Turkey 01626 and Country-specific equipment Russia 10323 and Country-specific equipment Taiwan 04825 and COC ADDITIONAL SCOPES |
L802A=No L822A=No S8LCA=No S8LRA=No S8LTA=No S8R3A=Yes |
|||||||||
| 11 | Label, coolant | R1234YF FGAS | 1 | 02/2025 | 71235B6C185 | Shop at ECS Tuning | ||||
| 12 | Notice sticker for jump-starting hybrid | 1 | 07149337740 | Shop at ECS Tuning | ||||||
| 15 | Label "coolant" | 2 | 10/2024 | 17135B3C256 | Shop at ECS Tuning | |||||
| 17 | Label "Ignition Coil" | 2 | 71227618790 | Shop at ECS Tuning | ||||||
