Towing hitch, detachable for BMW 2 Series F74 Gran Coupé 220 (2025)

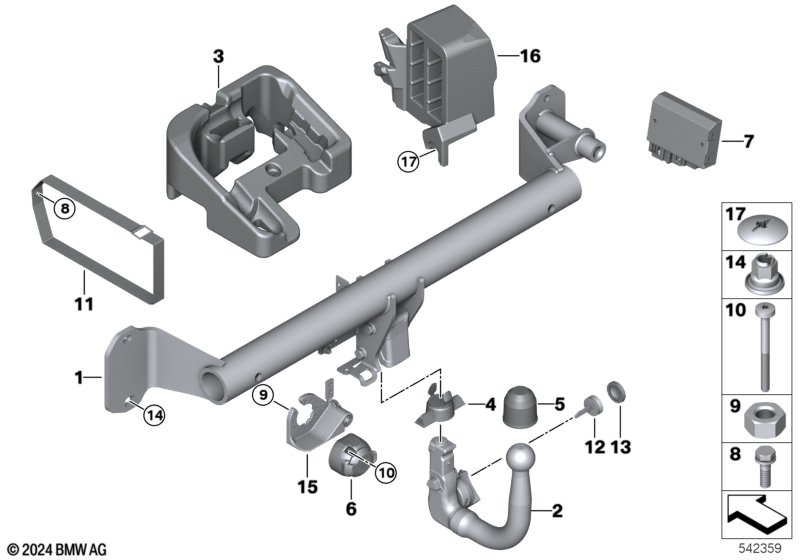

This Towing hitch, detachable technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Towing hitch, detachable |
S235A=Yes |
||||||||
| 01 | Scdel. of tow.hitch+detach.ball head | 1 | 51129851338 | Shop at ECS Tuning | ||||||
| 02 | Removable ball | 1 | 51129463513 | Shop at ECS Tuning | ||||||
| 04 | Blind plug | 1 | 51129478015 | Shop at ECS Tuning | ||||||
| 05 | Trailer hitch ball protection cap | 1 | 71606875979 | Shop at ECS Tuning | ||||||
| 06 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 07 | Control unit trailer hitch | AAG 02 LOW | 1 | 63115A64D37 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 10 | Countersunk screw | M5X30-8.8 | 3 | 07119908090 | Shop at ECS Tuning | |||||
| For vehicles with Emergency spare wheel |
S300A=No |
|||||||||
| 11 | Hook&loop fastener | 1 | 71606887530 | NoS | Shop at ECS Tuning | |||||
| 12 | Key (Code) | 1 | 71606775871 | Shop at ECS Tuning | ||||||
| 13 | Covering cap | 1 | 71606873893 | Shop at ECS Tuning | ||||||
| 14 | Hex nut | M12X1,5 | 4 | 71606795381 | Shop at ECS Tuning | |||||
| 15 | Socket holder | 1 | 71606885879 | Shop at ECS Tuning | ||||||
| 16 | Bracket, control unit | 1 | 16185A5A470 | NoS | Shop at ECS Tuning | |||||
| 17 | Push-button, gray | 1 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
