Mobility system for BMW MINI Cabrio F57 JCW (2019)

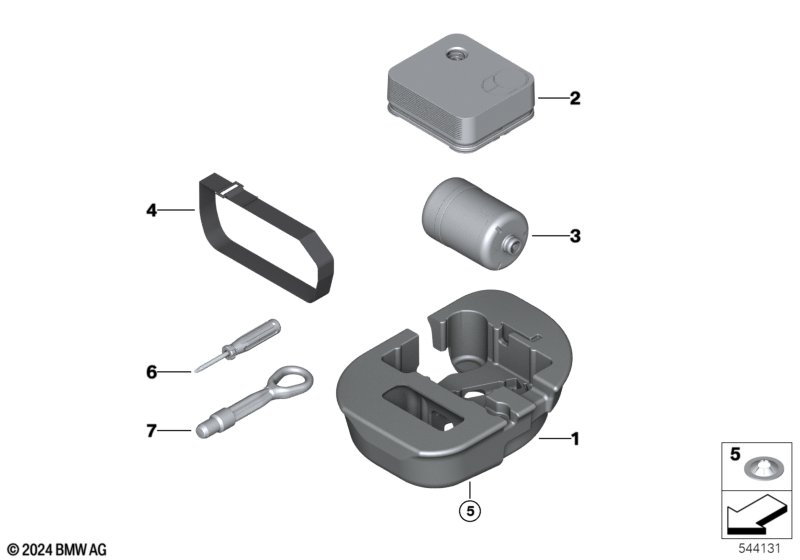

This Mobility system technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Use counterpart to old component | ||||||||||
| 01 | Tray for Mobility Set | 1 | 71106854752 | Shop at ECS Tuning | ||||||
| 01 | Storage tray, Mobility System | 1 | 71106877569 | Shop at ECS Tuning | ||||||
| 02 | Compressor | 1 | 71106898012 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Tire inflating bottle | 350ML | X | 71105A9BCA1 | Shop at ECS Tuning | |||||
| -- | Tire inflating bottle | 350ML | X | 71106871122 | Shop at ECS Tuning | |||||
| -- | Tire sealant bottle | 350ML | X | 71106898013 | ENDED | Shop at ECS Tuning | ||||
| 02 | Compressor Mobility System | 1 | 71106850380 | +core | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Tire inflating bottle | 350ML | X | 71106850379 | +core | Shop at ECS Tuning | ||||
| 03 | Tire inflating bottle | 350ML | 1 | 71106850379 | +core | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Compressor Mobility System | X | 71106850380 | +core | Shop at ECS Tuning | |||||
| 03 | Tire sealant bottle | 350ML | 1 | 08/2023 | 71106898013 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Compressor | X | 08/2023 | 71106898012 | Shop at ECS Tuning | |||||
| 03 | Tire inflating bottle | 350ML | 1 | 71105A9BCA1 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Compressor | X | 71106898012 | Shop at ECS Tuning | ||||||
| 04 | Hook&loop fastener | 1 | 71106867334 | Shop at ECS Tuning | ||||||
| 05 | Spring nut | 1 | 22326790073 | Shop at ECS Tuning | ||||||
| 06 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 07 | Towing hinge | 1 | 72157953893 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
