Safety belt front 2-door for BMW 3 Series E30 M3 (1989)

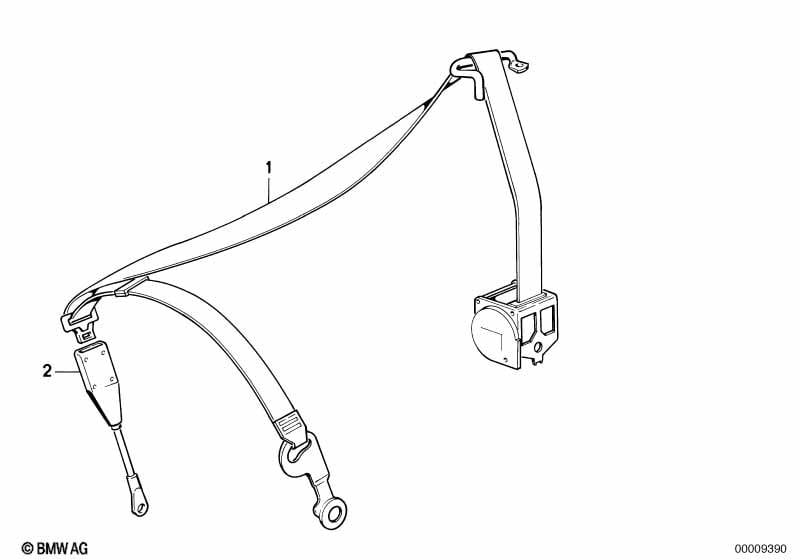

This Safety belt front 2-door technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper belt left | 1 | 72111935611 | $198.34 | Shop at ECS Tuning | |||||
| 01 | Upper belt right | 1 | 72111935612 | $198.34 | Shop at ECS Tuning | |||||
| 02 | Lower strap, front | 2 | 72111941407 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Safety belt front 2-door?
- This technical diagram illustrates the Safety belt front 2-door within the Restraint system and Accessories group for the 3 Series E30 M3 produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Upper belt left (Part #72111935611).
- Which models use the hardware listed in this Safety belt front 2-door?
- The hardware and components featured in the Safety belt front 2-door are specific to the 3 Series E30 M3 produced during 1989. These technical specifications ensure that parts like the Upper belt left (72111935611) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt front 2-door assembly?
- Each item in the Safety belt front 2-door corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Upper belt left by locating its position on the schematic, which then links to the official BMW part number 72111935611 for the Restraint system and Accessories section.
