Safety belt rear for BMW 3 Series E30 320i (1992)

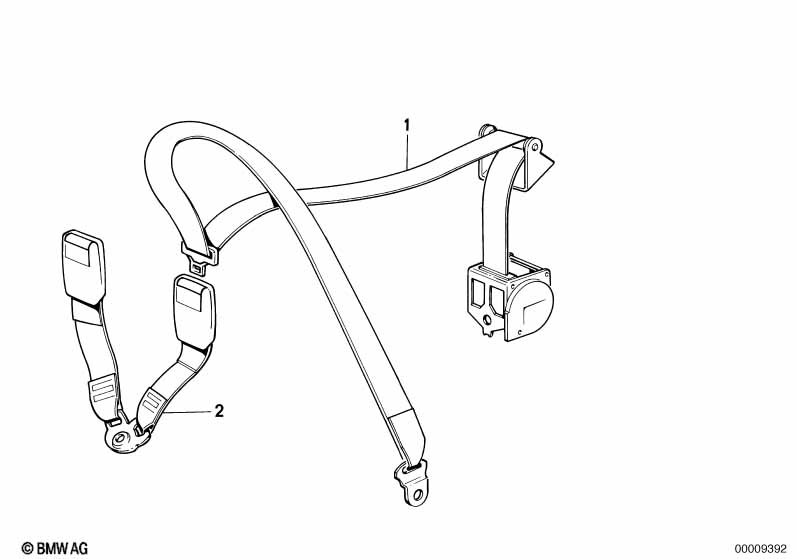

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper belt rear | 2 | 72111935621 | $169.28 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lower strap, rear | 1 | 72111941553 | $56.73 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Safety belt rear?
- This technical diagram illustrates the Safety belt rear within the Restraint system and Accessories group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Upper belt rear (Part #72111935621).
- Which models use the hardware listed in this Safety belt rear?
- The hardware and components featured in the Safety belt rear are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Upper belt rear (72111935621) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt rear assembly?
- Each item in the Safety belt rear corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Upper belt rear by locating its position on the schematic, which then links to the official BMW part number 72111935621 for the Restraint system and Accessories section.
