Front safety belt mounting parts for BMW 5 Series E12 528 (1976)

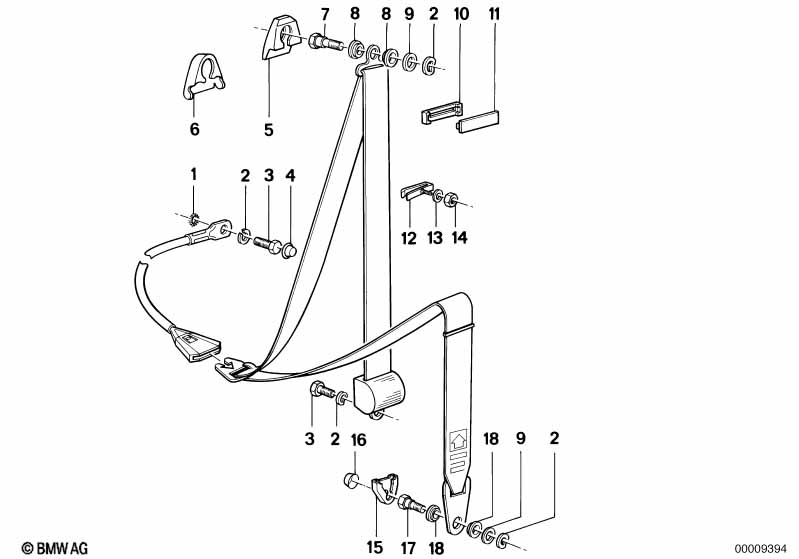

This Front safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | A12,5 | 2 | 08/1979 | 07119936670 | ENDED | Shop at ECS Tuning | |||
| 02 | Wave washer | 11,2 / 19 | 8 | 08/1979 | 72111808672 | $0.17 | Shop at ECS Tuning | |||
| 03 | Collar screw | 7/16"X22 | 4 | 08/1979 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning | ||
| 04 | Covering cap | ANTHRAZIT | 4 | 08/1979 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering cap | AUTOFLUG | 2 | 06/1977 | 72111815731 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering cap | GRAENGES | 2 | 08/1979 | 72111837677 | $3.12 | ENDED | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| 06 | Covering cap | SCHWARZ | 2 | 08/1979 | 72111828567 | $3.11 | Shop at ECS Tuning | |||
| 07 | Screw | 4 | 08/1979 | 72111845045 | $1.43 | ENDED | Shop at ECS Tuning | |||
| 08 | Stop disk | 4 | 08/1979 | 72111845046 | $0.22 | Shop at ECS Tuning | ||||
| 09 | Spacer bush | GRAENGES | 4 | 08/1979 | 72111815729 | $0.57 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| 09 | Washer | 4 | 08/1979 | 72111840586 | $0.45 | Shop at ECS Tuning | ||||
| 10 | Clamping | 1 | 72118469012 | Shop at ECS Tuning | ||||||
| 11 | Clamping | 1 | 72118469012 | Shop at ECS Tuning | ||||||
| 15 | Covering cap | AUTOFLUG | 2 | 08/1979 | 72111815732 | ENDED | Shop at ECS Tuning | |||
| 15 | Covering cap | REPA | 2 | 08/1979 | 72111830467 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| 16 | Covering cap | ANTHRAZIT | 2 | 08/1979 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | ||
| 17 | Screw | AUTOFLUG | 2 | 08/1979 | 72111819812 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| 17 | Screw | 2 | 08/1979 | 72111845045 | $1.43 | ENDED | Shop at ECS Tuning | |||
| 18 | Stop disk | 4 | 08/1979 | 72111813919 | $6.22 | Shop at ECS Tuning | ||||
| 18 | Stop disk | 4 | 08/1979 | 72111845046 | $0.22 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
