Safety belt front for BMW 3 Series E21 318 (1977)

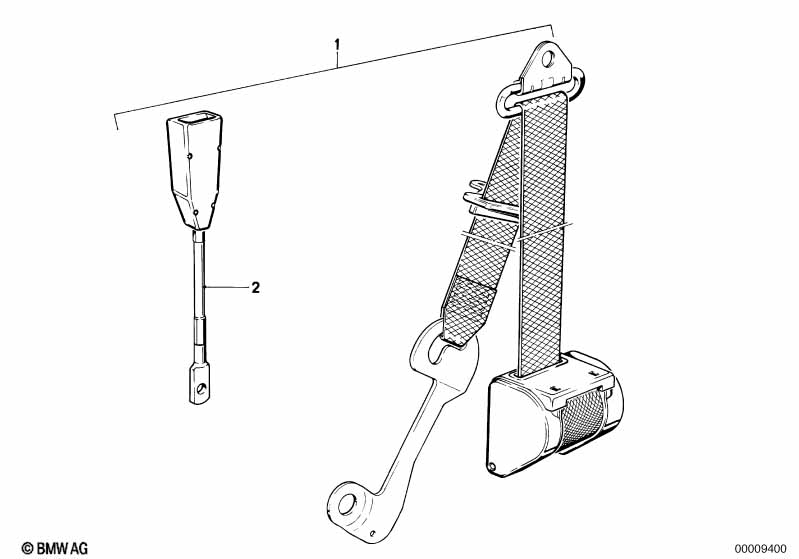

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt front left | AUTOFLUG | 1 | 08/1976 | 08/1978 | 72111854511 | $138.87 | ENDED | Shop at ECS Tuning | |
| 01 | Safety belt front right | AUTOFLUG | 1 | 08/1976 | 08/1978 | 72111854512 | $138.87 | Shop at ECS Tuning | ||
| 01 | Safety belt front left | GRAENGES-ESSEM | 1 | 08/1976 | 08/1978 | 72111854519 | ENDED | Shop at ECS Tuning | ||
| 01 | Safety belt front right | GRAENGES-ESSEM | 1 | 08/1976 | 08/1978 | 72111854520 | ENDED | Shop at ECS Tuning | ||
| 01 | Safety belt front left | REPA | 1 | 08/1976 | 08/1978 | 72111854527 | ENDED | Shop at ECS Tuning | ||
| 01 | Safety belt front right | REPA | 1 | 08/1976 | 08/1978 | 72111854528 | ENDED | Shop at ECS Tuning | ||
| 02 | Safety belt front left | AUTOFLUG | 2 | 72111854511 | $138.87 | ENDED | Shop at ECS Tuning | |||
| 02 | Lower strap, front | AUTOFLUG | 2 | 08/1976 | 08/1978 | 72111852873 | ENDED | Shop at ECS Tuning | ||
| 02 | Lower strap, front | REPA | 2 | 08/1976 | 08/1978 | 72111852876 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
