Rear safety belt mounting parts for BMW 3 Series E30 320i (1991)

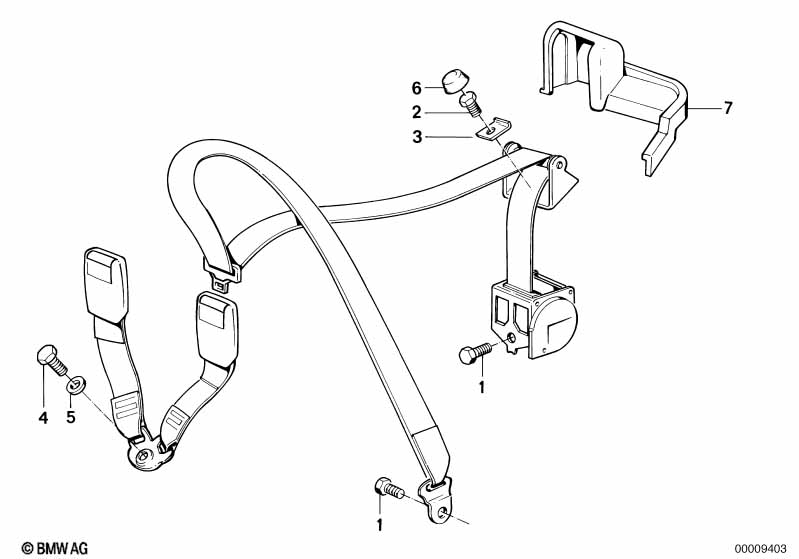

This Rear safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | 7/16" 20MM | 4 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 02 | Screw | 2 | 72111851242 | $0.93 | ENDED | Shop at ECS Tuning | ||||
| 03 | Base | 2 | 72111939495 | $1.77 | ENDED | Shop at ECS Tuning | ||||
| 04 | Collar screw | 7/16"X22 | 2 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning | |||
| 05 | Washer | 2 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 06 | Covering cap | ANTHRAZIT | 2 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 07 | Covering cap left | 1 | 72111971267 | $12.28 | Shop at ECS Tuning | |||||
| 07 | Covering cap right | 1 | 72111971268 | $12.28 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
