Safety belt adjuster for BMW 5 Series E34 525i (1990)

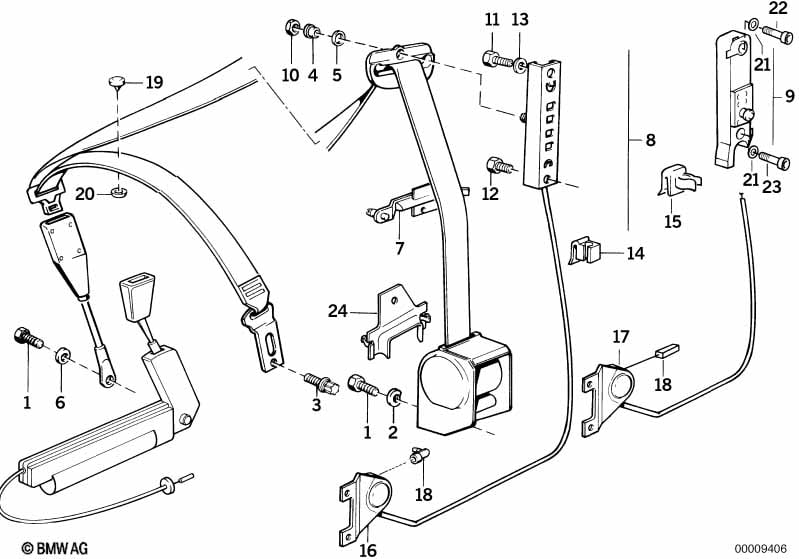

This Safety belt adjuster technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | 7/16" 20MM | 3 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 02 | Wave washer | 11,2 / 19 | 2 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 02 | Circlip | 2 | 72111969175 | $0.53 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | 7/16X16 | 2 | 72111954408 | $1.22 | Shop at ECS Tuning | ||||
| 04 | Bush | 2 | 72111938276 | $2.28 | Shop at ECS Tuning | |||||
| 04 | Damper ring | 2 | 72111978980 | $1.23 | Shop at ECS Tuning | |||||
| 05 | Stop disk | 2 | 72111845046 | $0.22 | Shop at ECS Tuning | |||||
| 05 | Shim | 2 | 72111978983 | $1.07 | Shop at ECS Tuning | |||||
| 06 | Washer | 2 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 07 | Bow | 2 | 03/1998 | 72119117185 | $1.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
