Front safety belt mounting parts for BMW 7 Series E23 735i (1982)

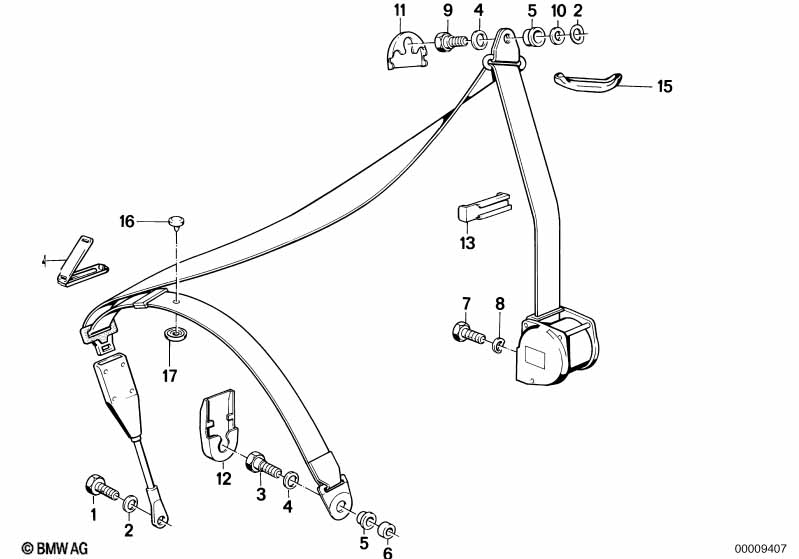

This Front safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | 2 | 08/1979 | 07149132575 | $0.56 | Shop at ECS Tuning | ||||
| 02 | Wave washer | 11,2 / 19 | 4 | 08/1979 | 72111808672 | $0.17 | Shop at ECS Tuning | |||
| 03 | Screw | 2 | 08/1979 | 72111875907 | $0.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Stop disk | 8 | 08/1979 | 72111845046 | $0.22 | Shop at ECS Tuning | ||||
| 05 | Shim | 4 | 08/1979 | 72111859876 | $0.63 | Shop at ECS Tuning | ||||
| 06 | Spacer bush | 2 | 08/1979 | 72118100416 | $1.15 | ENDED | Shop at ECS Tuning | |||
| 07 | Collar screw | 7/16"X22 | 2 | 09/1980 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning | ||
| 08 | Wave washer | 11,2 / 19 | 2 | 09/1980 | 72111808672 | $0.17 | Shop at ECS Tuning | |||
| 09 | Screw | 2 | 09/1980 | 72111859988 | $0.86 | ENDED | Shop at ECS Tuning | |||
| 10 | Washer | 2 | 08/1979 | 72111808673 | $0.37 | Shop at ECS Tuning | ||||
| 11 | Covering cap | SCHWARZ | 2 | 08/1979 | 72111828567 | $3.11 | Shop at ECS Tuning | |||
| 12 | Covering cap | 2 | 08/1979 | 72111860143 | $1.73 | Shop at ECS Tuning | ||||
| 13 | Sliding piece | 2 | 08/1979 | 72111851534 | $0.73 | ENDED | Shop at ECS Tuning | |||
| 14 | Clamping | 2 | 08/1979 | 72118469012 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
