Safety belt front 2-door for BMW 3 Series E21 320 (1979)

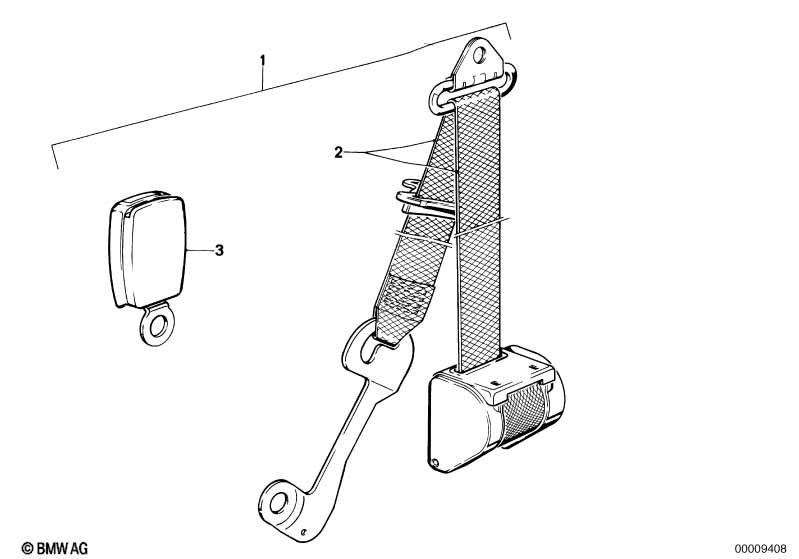

This Safety belt front 2-door technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt front left | AUTOFLUG | 1 | 08/1978 | 09/1980 | 72111854511 | $138.87 | ENDED | Shop at ECS Tuning | |
| 01 | Safety belt front right | AUTOFLUG | 1 | 08/1978 | 09/1980 | 72111854512 | $138.87 | Shop at ECS Tuning | ||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Safety belt front left | 1 | 08/1978 | 09/1980 | 72111868961 | ENDED | Shop at ECS Tuning | |||
| 01 | Safety belt front right | 1 | 08/1978 | 09/1980 | 72111868962 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Great Britain |
L812A=Yes |
|||||||||
| 01 | Safety belt front left | 1 | 08/1978 | 09/1980 | 72111868951 | ENDED | Shop at ECS Tuning | |||
| 01 | Safety belt front right | 1 | 08/1978 | 09/1980 | 72111868952 | ENDED | Shop at ECS Tuning | |||
| 03 | Lower strap, front | AUTOFLUG | 2 | 08/1978 | 72111868900 | $107.39 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Safety belt front 2-door?
- This technical diagram illustrates the Safety belt front 2-door within the Restraint system and Accessories group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Safety belt front left (Part #72111854511).
- Which models use the hardware listed in this Safety belt front 2-door?
- The hardware and components featured in the Safety belt front 2-door are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Safety belt front left (72111854511) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt front 2-door assembly?
- Each item in the Safety belt front 2-door corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Safety belt front left by locating its position on the schematic, which then links to the official BMW part number 72111854511 for the Restraint system and Accessories section.
